SGS

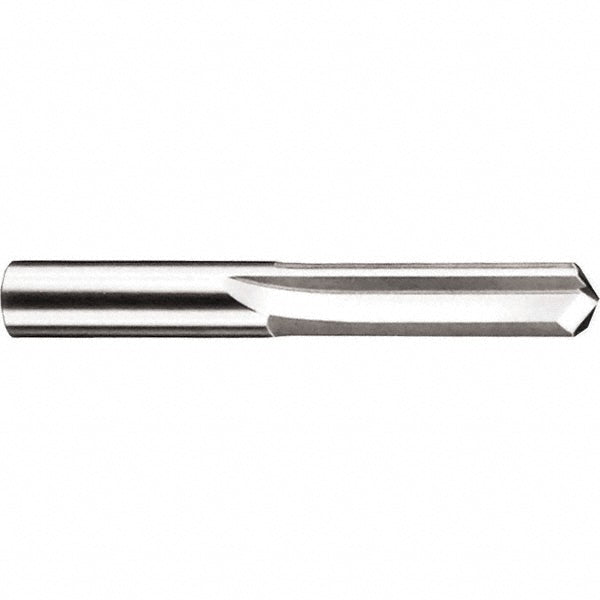

#31 Carbide Drill Bit, Coated, 140° point - SGS 56240
MFR# 56240Series 106
$38.72List $48.79
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
CoatingCoated
Description
The SGS 56240 is a #31 Carbide drill bit with a Coated finish, 140° point. Suited for cast iron, hardened steel, steel. 1-7/8 overall length. Series 106.
Specifications
Coating finishCoated
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to -0.0005 in; +0.0000 to -0.0127 mm
Drill bit size0.1200
Drill bit size wire#31
Drill bit typeStraight-Flute
Drill point angle140
Flute by diameter ratio3xD
Flute length0.8750
Material gradeMicrograin
Maximum drilling depth in45/64
Number of flutes2
Overall length in1-7/8
Point typeStandard
Primary workpiece materialCast Iron; Hardened Steel; Steel
Shank diameter0.1200
Shank length in1
StandardsDIN 6539
Tool materialCarbide
Web thinningWeb-Thinned
