SGS

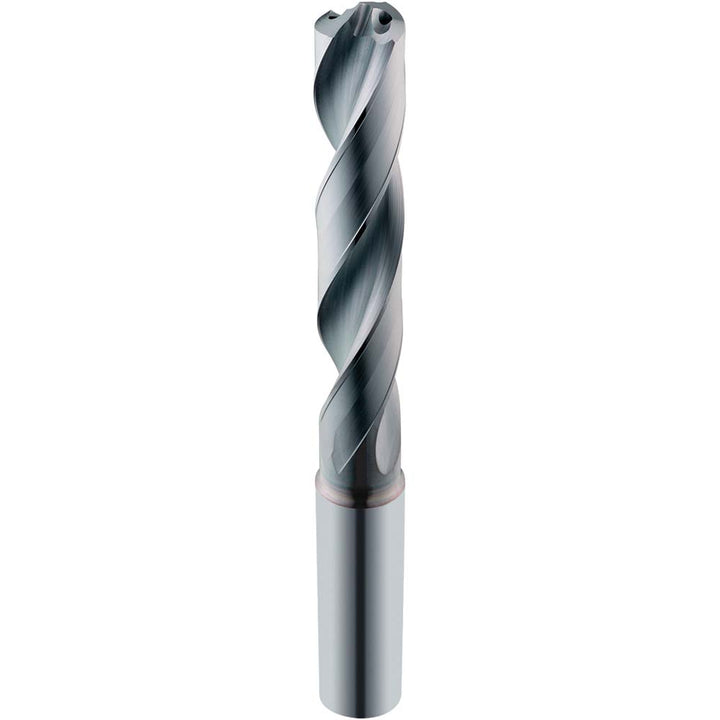

7/32" Solid Carbide Screw Machine Drill Bit, Coated, 135° point - SGS 56408
MFR# 56408Series 142P
$168.61List $212.49
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size7/32
Flutes2
CoatingCoated
Description
The SGS 56408 is a 7/32" Solid Carbide Screw Machine drill bit with a Coated finish, 135° point. Suited for universal. 25/32 flute length. Series 142P.
Specifications
Coating finishCoated
Coolant throughYes
Cutting directionRight Hand
Drill bit diameter tolerance+0.00016 to +0.00063 in; +0.004 to +0.016 mm
Drill bit gradeHigh Performance
Drill bit size in7/32
Drill bit size range0.2000 to 0.2500
Drill length typeScrew Machine
Drill point angle135
Drill point length0.0453
Flute by diameter ratio3xD
Flute length in25/32
Flute typeSpiral
Material gradeMicrograin
Maximum drilling depth1.1024
Number of flutes2
Number of margins4
Overall length2.59840
Point typeStandard
Primary workpiece materialUniversal
Shank diameter (mm)5.9995
Shank length1.4173
Shank typeStraight-Cylindrical
Specification designationDIN
Specification numberDIN 6537
Spiral typeRegular
Tool materialSolid Carbide
Tool performanceHigh Performance
Web thinningWeb-Thinned
