SGS

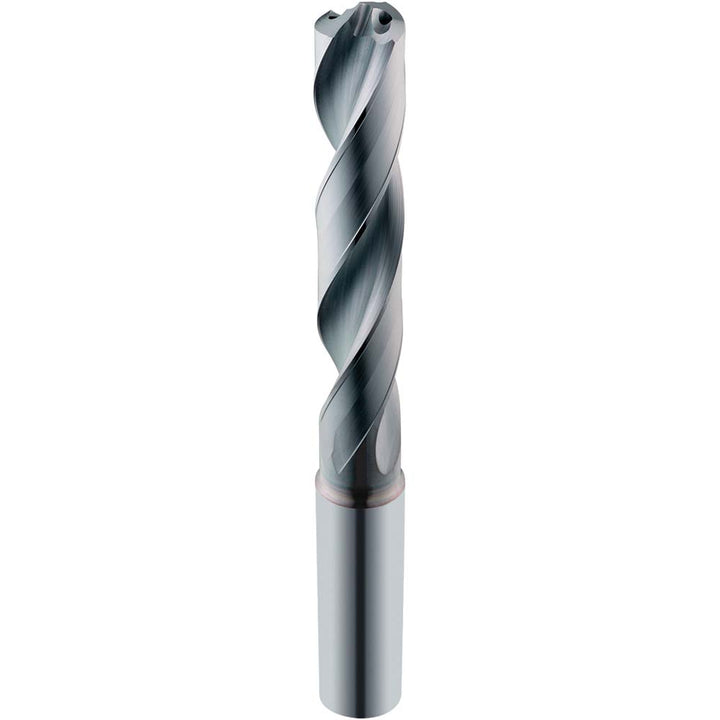

11/32" Solid Carbide Screw Machine Drill Bit, Coated, 135° point - SGS 56418
MFR# 56418Series 142P
$183.65List $235.53
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size11/32
Flutes2
CoatingCoated
Description
The SGS 56418 is a 11/32" Solid Carbide Screw Machine drill bit with a Coated finish, 135° point. Suited for universal. Series 142P.
Specifications
Coating finishCoated
Coolant throughYes
Cutting directionRight Hand
Drill bit diameter tolerance+0.00028 to +0.00098 in; +0.007 to +0.025 mm
Drill bit gradeHigh Performance
Drill bit size in11/32
Drill bit size range0.3000 to 0.3500
Drill length typeScrew Machine
Drill point angle135
Drill point length0.0712
Flute by diameter ratio3xD
Flute length1.8504
Flute typeSpiral
Material gradeMicrograin
Maximum drilling depth1.8504
Number of flutes2
Number of margins4
Overall length3.50390
Point typeStandard
Primary workpiece materialUniversal
Shank diameter (mm)10.0000
Shank length1.5748
Shank typeStraight-Cylindrical
Specification designationDIN
Specification numberDIN 6537
Spiral typeRegular
Tool materialSolid Carbide
Tool performanceHigh Performance
Web thinningWeb-Thinned
