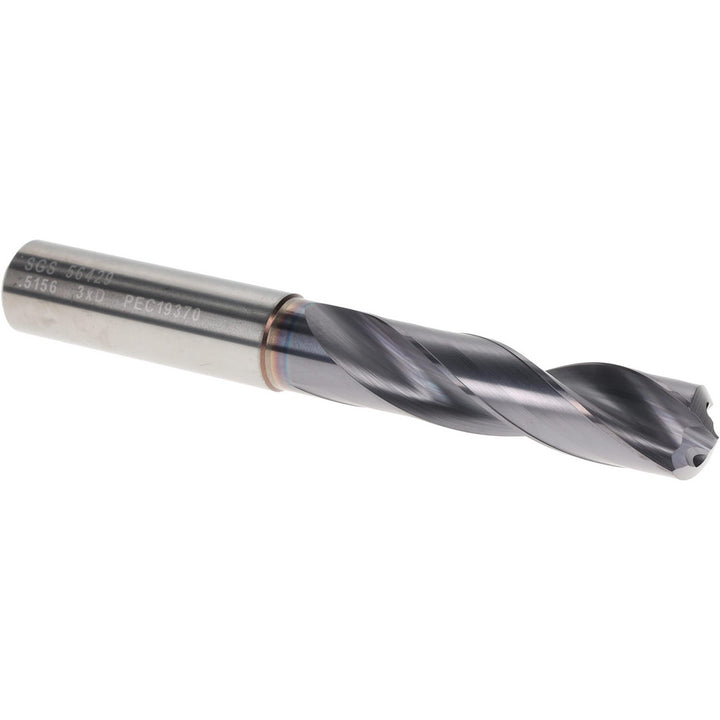

33/64" Solid Carbide Screw Machine Drill Bit, Ti-NAMITE-X, 135° point - SGS 56429

SGS

33/64" Solid Carbide Screw Machine Drill Bit, Ti-NAMITE-X, 135° point - SGS 56429

MFR# 56429Series 142P

$393.84List $505.12 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Drill size33/64
Flutes2
CoatingTi-NAMITE-X

Description

The SGS 56429 is a 33/64" Solid Carbide Screw Machine drill bit with a Ti-NAMITE-X finish, 135° point. Suited for universal. 2-23/64 flute length. Series 142P.

Specifications

Coating finishTi-NAMITE-X
Coolant throughYes
Cutting directionRight Hand
Drill bit diameter tolerance+0.00028 to +0.00098 in; +0.007 to +0.025 mm
Drill bit gradeHigh Performance
Drill bit size in33/64
Drill bit size range0.5000 to 0.6000
Drill length typeScrew Machine
Drill point angle135
Drill point length0.1068
Flute by diameter ratio3xD
Flute length in2-23/64
Flute typeSpiral
Material gradeMicrograin
Maximum drilling depth2.3622
Number of flutes2
Number of margins4
Overall length4.2126
Point typeStandard
Primary workpiece materialUniversal
Shank diameter0.5500
Shank length1.7717
Shank typeStraight-Cylindrical
Specification designationDIN
Specification numberDIN 6537
Spiral typeRegular
Tool materialSolid Carbide
Tool performanceHigh Performance
Web thinningWeb-Thinned
