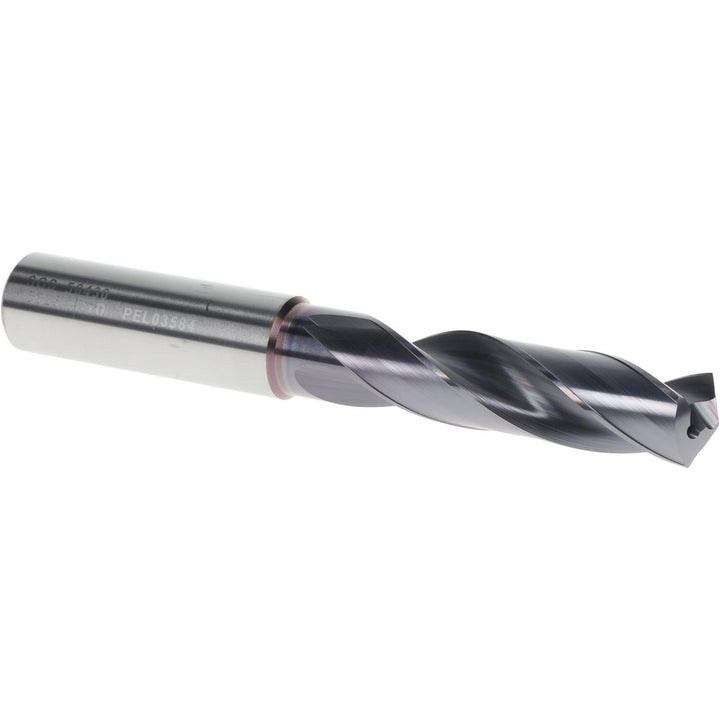

9/16" Solid Carbide Screw Machine Drill Bit, Ti-NAMITE-X, 135° point - SGS 56430

SGS

9/16" Solid Carbide Screw Machine Drill Bit, Ti-NAMITE-X, 135° point - SGS 56430

MFR# 56430Series 142P

$454.98List $583.54 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Drill size9/16
Flutes2
CoatingTi-NAMITE-X

Description

The SGS 56430 is a 9/16" Solid Carbide Screw Machine drill bit with a Ti-NAMITE-X finish, 135° point. Suited for universal. 1-21/64 flute length. Series 142P.

Specifications

Coating finishTi-NAMITE-X
Coolant throughYes
Cutting directionRight Hand
Drill bit diameter tolerance+0.00024 to +0.00083 in; +0.006 to +0.021 mm
Drill bit gradeHigh Performance
Drill bit size in9/16
Drill bit size range0.5000 to 0.6000
Drill length typeScrew Machine
Drill point angle135
Drill point length0.1165
Flute by diameter ratio3xD
Flute length in1-21/64
Flute typeSpiral
Material gradeMicrograin
Maximum drilling depth2.5591
Number of flutes2
Number of margins4
Overall length4.5276
Point typeStandard
Primary workpiece materialUniversal
Shank diameter0.3100
Shank length1.8898
Shank typeStraight-Cylindrical
Specification designationDIN
Specification numberDIN 6537
Spiral typeRegular
Tool materialSolid Carbide
Tool performanceHigh Performance
Web thinningWeb-Thinned
