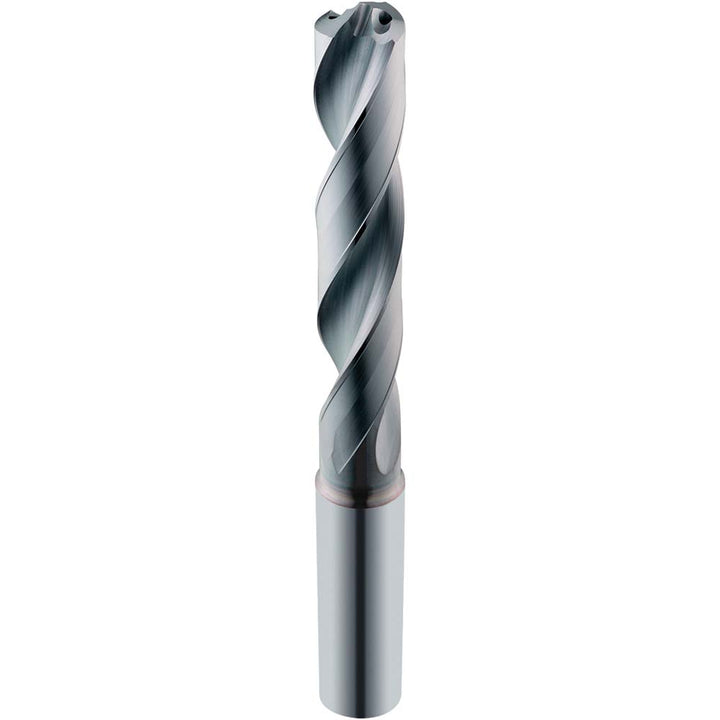

21/32" Solid Carbide Screw Machine Drill Bit, Coated, 135° point - SGS 56433

SGS

21/32" Solid Carbide Screw Machine Drill Bit, Coated, 135° point - SGS 56433

MFR# 56433Series 142P

$597.69List $766.57 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Drill size21/32
Flutes2
CoatingCoated

Description

The SGS 56433 is a 21/32" Solid Carbide Screw Machine drill bit with a Coated finish, 135° point. Suited for universal. 1-21/64 flute length. Series 142P.

Specifications

Coating finishCoated
Coolant throughYes
Cutting directionRight Hand
Drill bit diameter tolerance+0.00024 to +0.00083 in; +0.006 to +0.021 mm
Drill bit gradeHigh Performance
Drill bit size in21/32
Drill bit size range0.6000+
Drill length typeScrew Machine
Drill point angle135
Drill point length0.1359
Flute by diameter ratio3xD
Flute length in1-21/64
Flute typeSpiral
Material gradeMicrograin
Maximum drilling depth2.8740
Number of flutes2
Number of margins4
Overall length4.84250
Point typeStandard
Primary workpiece materialUniversal
Shank diameter (mm)18.0010
Shank length1.8898
Shank typeStraight-Cylindrical
Specification designationDIN
Specification numberDIN 6537
Spiral typeRegular
Tool materialSolid Carbide
Tool performanceHigh Performance
Web thinningWeb-Thinned
