SGS

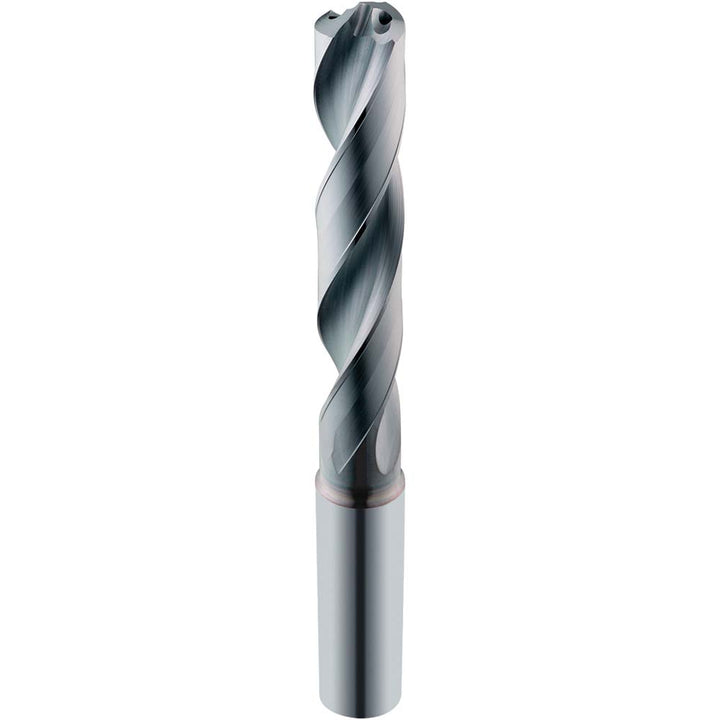

3/16" Solid Carbide Drill Bit, Ti-NAMITE-X, 135° point - SGS 56442
MFR# 56442Series 142P
$169.58List $217.50
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size3/16
Flutes2
CoatingTi-NAMITE-X
Description
The SGS 56442 is a 3/16" Solid Carbide drill bit with a Ti-NAMITE-X finish, 135° point. Series 142P.
Specifications
Coating finishTi-NAMITE-X
Coolant throughYes
Cutting directionRight Hand
Drill bit diameter tolerance+.00024 to +.00083 in; +0.006 to +0.021 mm
Drill bit materialSolid Carbide
Drill bit size in3/16
Drill point angle degrees135
Drill point length0.0600
Flute by diameter ratio5xD
Flute length1.6250
Flute typeSpiral
Maximum drilling depth2.0800
Number of flats0
Number of flutes2
Overall length (mm)82.00
Point typeStandard
Shank diameter0.3100
Shank length (mm)44.00
Shank typeStraight-Cylindrical
Web thinningWeb-Thinned
