SGS

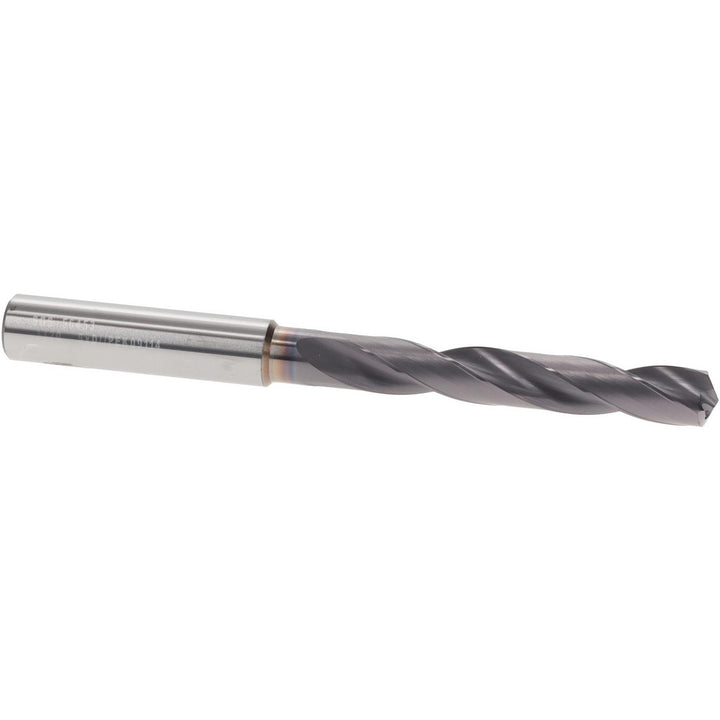

Letter Q Solid Carbide Drill Bit, Ti-NAMITE-X, 135° point - SGS 56453
MFR# 56453Series 142P
$229.80List $294.72
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
CoatingTi-NAMITE-X
Description
The SGS 56453 is a Letter Q Solid Carbide drill bit with a Ti-NAMITE-X finish, 135° point. Series 142P.
Specifications
Coating finishTi-NAMITE-X
Coolant throughYes
Cutting directionRight Hand
Drill bit diameter tolerance+.00028 to +.00098 in; +0.007 to +0.025 mm
Drill bit gradeHigh Performance
Drill bit materialSolid Carbide
Drill bit size0.332
Drill bit size letterQ
Drill bit size range0.3000 - 0.3500
Drill point angle degrees135
Drill point length0.0688
Flute by diameter ratio5xD
Flute length2.4016
Flute typeSpiral
Material gradeMicrograin
Maximum drilling depth1.3780
Number of flats0
Number of flutes2
Overall length4.0551
Point typeStandard
Shank diameter0.4700
Shank length1.5748
Shank typeStraight-Cylindrical
Specification designationDIN
Specification numberDIN 6537
Web thinningWeb-Thinned
