SGS

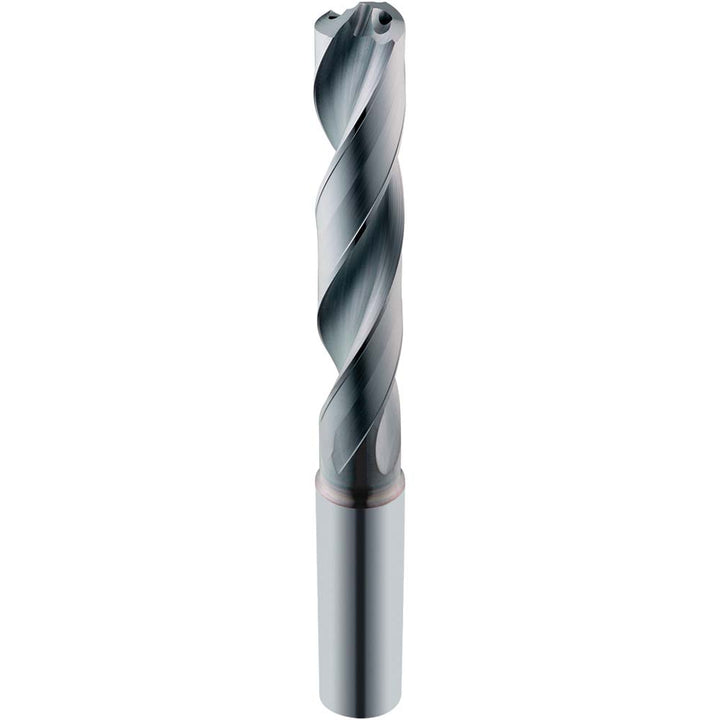

27/64" Solid Carbide Drill Bit, Ti-NAMITE-X, 135° point - SGS 56460
MFR# 56460Series 142P
$303.95List $389.82
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size27/64
Flutes2
CoatingTi-NAMITE-X
Description
The SGS 56460 is a 27/64" Solid Carbide drill bit with a Ti-NAMITE-X finish, 135° point. Series 142P.
Specifications
Coating finishTi-NAMITE-X
Coolant throughYes
Cutting directionRight Hand
Drill bit diameter tolerance+.00028 to +.00098 in; +0.007 to +0.025 mm
Drill bit finish coatingTX
Drill bit gradeHigh Performance
Drill bit materialSolid Carbide
Drill bit size in27/64
Drill bit size range0.4000 - 0.5000
Drill point angle degrees135
Drill point length0.0874
Flute by diameter ratio5xD
Flute length2.7953
Flute typeSpiral
Material gradeMicrograin
Maximum drilling depth1.3780
Number of flats0
Number of flutes2
Overall length4.6457
Point typeStandard
Shank diameter0.4700
Shank length1.7717
Shank typeStraight-Cylindrical
Specification designationDIN
Specification numberDIN 6537
Web thinningWeb-Thinned
