SGS
33/64" Solid Carbide Drill Bit, Ti-NAMITE-X, 135° point - SGS 56465
MFR# 56465Series 142P
$492.05List $631.07
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size33/64
Flutes2
CoatingTi-NAMITE-X
Description

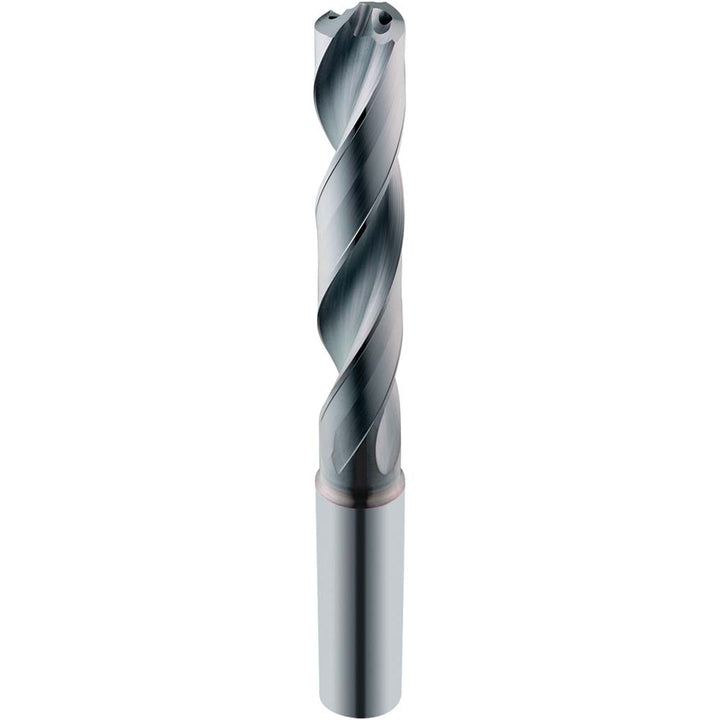

The SGS 56465 is a 33/64" Solid Carbide drill bit with a Ti-NAMITE-X finish, 135° point. Series 142P.
Specifications
Coating finishTi-NAMITE-X
Coolant throughYes
Cutting directionRight Hand
Drill bit diameter tolerance+.00028 to +.00098 in; +0.007 to +0.025 mm
Drill bit finish coatingTX
Drill bit gradeHigh Performance
Drill bit materialSolid Carbide
Drill bit size in33/64
Drill bit size range0.5000 - 0.6500
Drill point angle degrees135
Drill point length0.1068
Flute by diameter ratio5xD
Flute length3.0315
Flute typeSpiral
Material gradeMicrograin
Maximum drilling depth2.2047
Number of flats0
Number of flutes2
Overall length4.8819
Point typeStandard
Shank diameter0.5500
Shank length1.7717
Shank typeStraight-Cylindrical
Specification designationDIN
Specification numberDIN 6537
Web thinningWeb-Thinned
