#21 Solid Carbide Drill Bit, Ti-NAMITE-X, 135° point - SGS 56476
MFR# 56476Series 142P
$261.09List $334.85
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
CoatingTi-NAMITE-X
Description

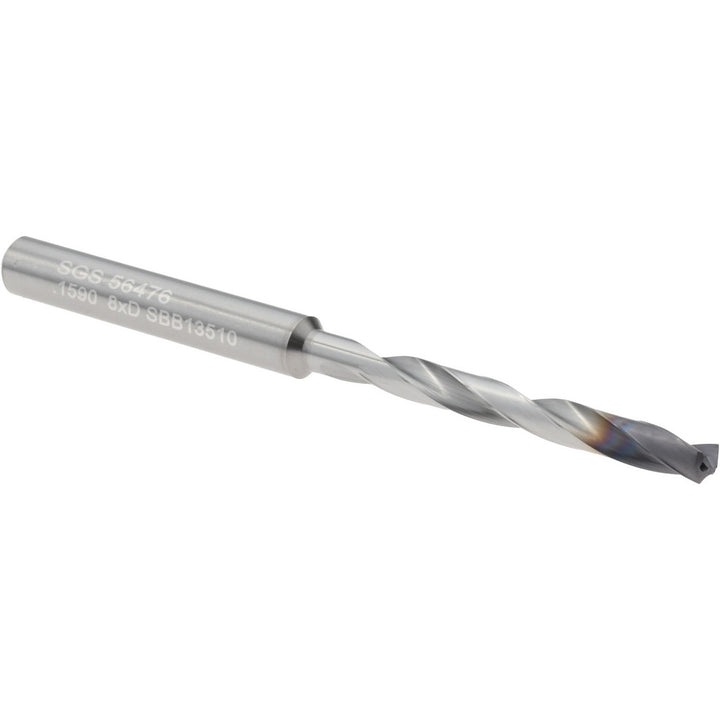

The SGS 56476 is a #21 Solid Carbide drill bit with a Ti-NAMITE-X finish, 135° point. Series 142P.
Specifications
Coating finishTi-NAMITE-X
Coolant throughYes
Cutting directionRight Hand
Drill bit diameter tolerance+.00028 to +.00098 in; +0.007 to +0.025 mm
Drill bit gradeHigh Performance
Drill bit size wire#21
Drill point angle degrees135
Drill point length (mm)0.84
Flute length x diameter ratio8xD
Flute typeSpiral
Material applicationUniversal
Material gradeMicrograin
Overall length (mm)81.00
Point typeStandard
Shank length in1-49/64
Shank typeStraight-Cylindrical
Specification designationDIN
Specification numberDIN 6537
Spiral typeRegular
Threaded shankNo
Tool materialSolid Carbide
Web thinningWeb-Thinned
