SGS

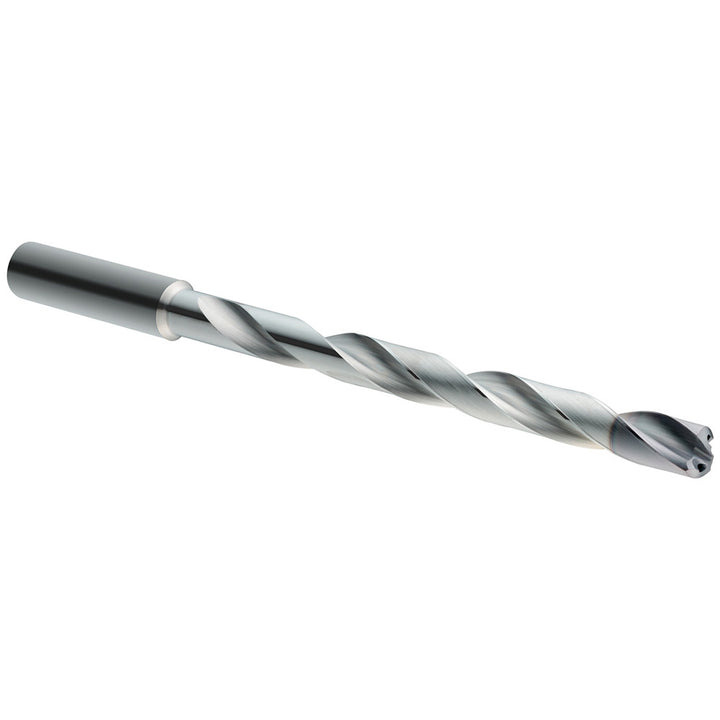

1/4" Solid Carbide Drill Bit, TX, 135° point - SGS 56482
MFR# 56482Series 142P
$301.16List $386.24
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size1/4
CoatingTX
Description
The SGS 56482 is a 1/4" Solid Carbide drill bit with a TX finish, 135° point. 4-31/64 flute length. Series 142P.
Specifications
Coating finishTX
Coolant throughYes
Cutting directionRight Hand
Drill bit diameter tolerance+.00028/+.00098 in; +0.007/+0.025 mm
Drill bit gradeHigh Performance
Drill bit size in1/4
Drill point angle degrees135
Drill point length0.0518
Flute length in4-31/64
Flute length x diameter ratio8xD
Flute typeSpiral
Material applicationUniversal
Material gradeMicrograin
Maximum drilling depth2.9921
Overall length (mm)114.00
Point typeStandard
Shank diameter (mm)8.00
Shank length in1-49/64
Shank typeCylindrical
Specification designationDIN
Specification numberDIN 6537
Spiral typeRegular
Threaded shankNo
Tool materialSolid Carbide
Web thinningWeb-Thinned
