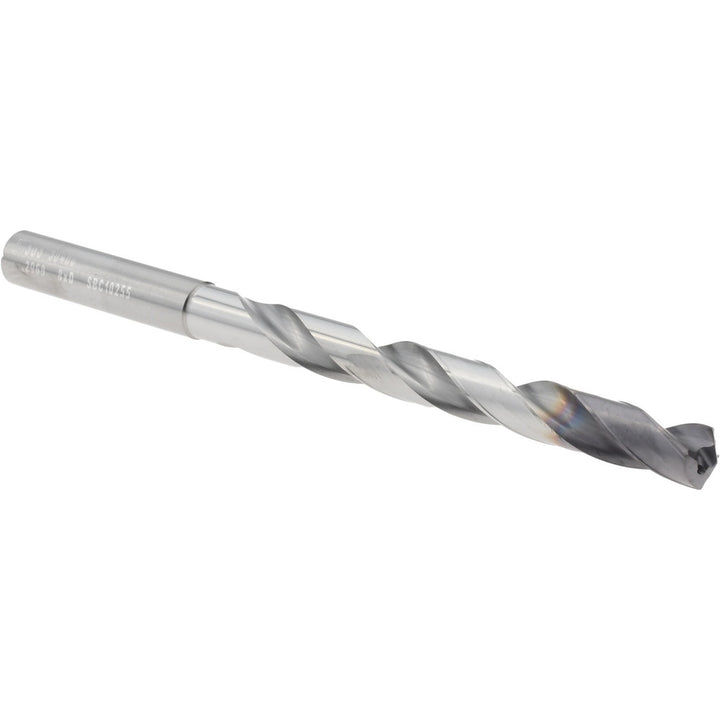

19/64" Solid Carbide Drill Bit, Ti-NAMITE-X, 137° point - SGS 56486
MFR# 56486Series 142P
$321.65List $412.53
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size19/64
CoatingTi-NAMITE-X
Description
The SGS 56486 is a 19/64" Solid Carbide drill bit with a Ti-NAMITE-X finish, 137° point. Series 142P.
Specifications
Coating finishTi-NAMITE-X
Coolant throughYes
Cutting directionRight Hand
Drill bit gradeHigh Performance
Drill bit size in19/64
Drill point angle degrees137
Flute length (mm)76.00
Flute length x diameter ratio8xD
Flute typeSpiral
Material applicationUniversal
Material gradeMicrograin
Maximum drilling depth2.9921
Overall length (mm)114
Point typeStandard
Shank diameter (mm)8.00
Shank length in1-49/64
Shank typeStraight-Cylindrical
Specification designationDIN
Specification numberDIN 6537
Spiral typeRegular
Threaded shankNo
Tool materialSolid Carbide
Web thinningWeb-Thinned
