SGS

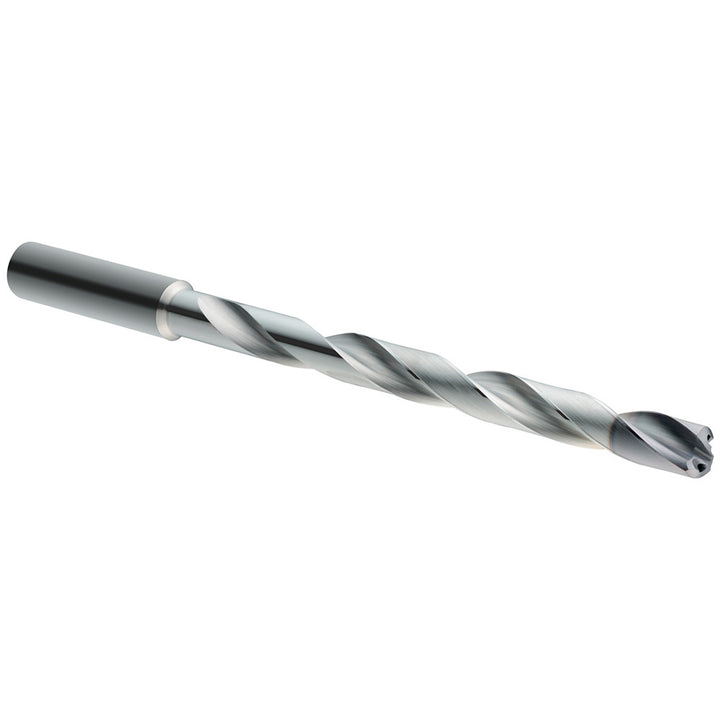

15/32" Solid Carbide Drill Bit, TX, 135° point - SGS 56498
MFR# 56498Series 142P
$487.38List $625.08
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size15/32
CoatingTX
Description
The SGS 56498 is a 15/32" Solid Carbide drill bit with a TX finish, 135° point. 5-63/64 flute length. Series 142P.
Specifications
Coating finishTX
Coolant throughYes
Cutting directionRight Hand
Drill bit diameter tolerance+.00028/+.00098 in; +0.007/+0.025 mm
Drill bit gradeHigh Performance
Drill bit size in15/32
Drill point angle degrees135
Drill point length0.0971
Flute length in5-63/64
Flute length x diameter ratio8xD
Flute typeSpiral
Material applicationUniversal
Material gradeMicrograin
Maximum drilling depth4.4882
Overall length (mm)161.99
Point typeStandard
Shank diameter (mm)11.99
Shank length in1-7/8
Shank typeCylindrical
Specification designationDIN
Specification numberDIN 6537
Spiral typeRegular
Threaded shankNo
Tool materialSolid Carbide
Web thinningWeb-Thinned
