SGS

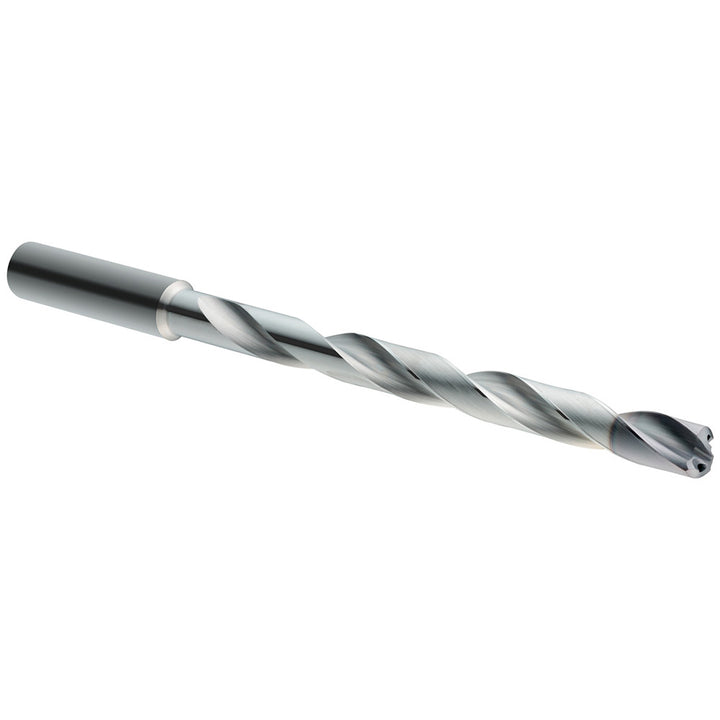

31/64" Solid Carbide Drill Bit, TX, 135° point - SGS 56499
MFR# 56499Series 142P
$732.39List $939.32
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size31/64
CoatingTX
Description
The SGS 56499 is a 31/64" Solid Carbide drill bit with a TX finish, 135° point. 5-63/64 flute length. Series 142P.
Specifications
Coating finishTX
Coolant throughYes
Cutting directionRight Hand
Drill bit diameter tolerance+.00028/+.00098 in; +0.007/+0.025 mm
Drill bit gradeHigh Performance
Drill bit size in31/64
Drill point angle degrees135
Drill point length0.1003
Flute length in5-63/64
Flute length x diameter ratio8xD
Flute typeSpiral
Material applicationUniversal
Material gradeMicrograin
Maximum drilling depth5.2362
Overall length (mm)178.00
Point typeStandard
Shank diameter (mm)14.00
Shank length in1-7/8
Shank typeCylindrical
Specification designationDIN
Specification numberDIN 6537
Spiral typeRegular
Threaded shankNo
Tool materialSolid Carbide
Web thinningWeb-Thinned
