1/2" Solid Carbide Drill Bit, TX, 135° point - SGS 56500
MFR# 56500Series 142P
$732.39List $939.32
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size1/2
CoatingTX
Description

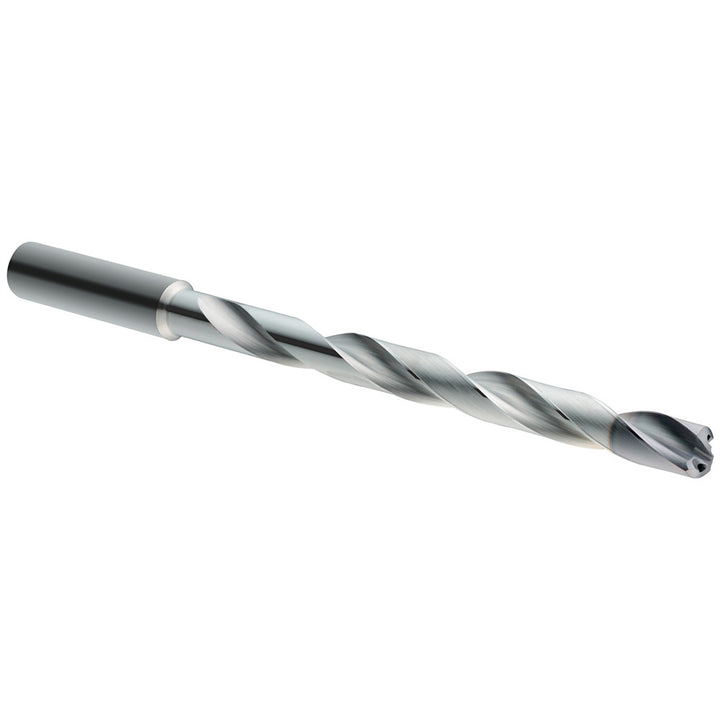

The SGS 56500 is a 1/2" Solid Carbide drill bit with a TX finish, 135° point. Series 142P.
Specifications
Coating finishTX
Coolant throughYes
Cutting directionRight Hand
Drill bit diameter tolerance+.00024/+.00083 in; +0.006/+0.021 mm
Drill bit gradeHigh Performance
Drill bit size in1/2
Drill point angle degrees135
Drill point length0.1036
Flute length5.2362
Flute length x diameter ratio8xD
Flute typeSpiral
Material applicationUniversal
Material gradeMicrograin
Maximum drilling depth5.2362
Overall length5-19/32
Point typeStandard
Shank diameter (mm)14.00
Shank length1.7717
Shank typeCylindrical
Specification designationDIN
Specification numberDIN 6537
Spiral typeRegular
Threaded shankNo
Tool materialSolid Carbide
Web thinningWeb-Thinned
