SGS

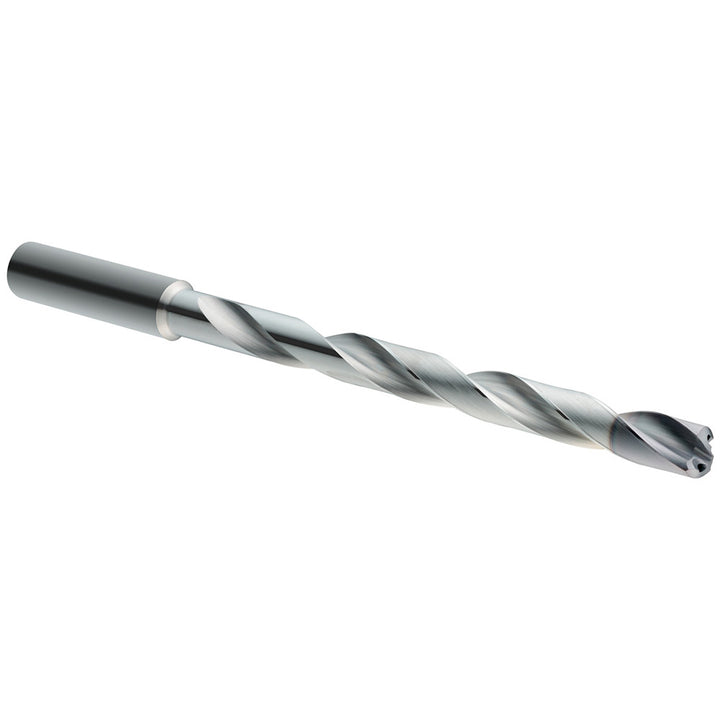

21/32" Solid Carbide Drill Bit, TX, 135° point - SGS 56505
MFR# 56505Series 142P
$1,405.82List $1,771.67
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size21/32
CoatingTX
Description
The SGS 56505 is a 21/32" Solid Carbide drill bit with a TX finish, 135° point. Series 142P.
Specifications
Coating finishTX
Coolant throughYes
Cutting directionRight Hand
Drill bit diameter tolerance+.00024/+.00083 in; +0.006/+0.021 mm
Drill bit gradeHigh Performance
Drill bit size in21/32
Drill point angle degrees135
Drill point length0.1359
Flute length6.7323
Flute length x diameter ratio8xD
Flute typeSpiral
Material applicationUniversal
Material gradeMicrograin
Maximum drilling depth6.7323
Overall length5-19/32
Point typeStandard
Shank diameter (mm)18.00
Shank length1.8898
Shank typeCylindrical
Specification designationDIN
Specification numberDIN 6537
Spiral typeRegular
Threaded shankNo
Tool materialSolid Carbide
Web thinningWeb-Thinned
