SGS

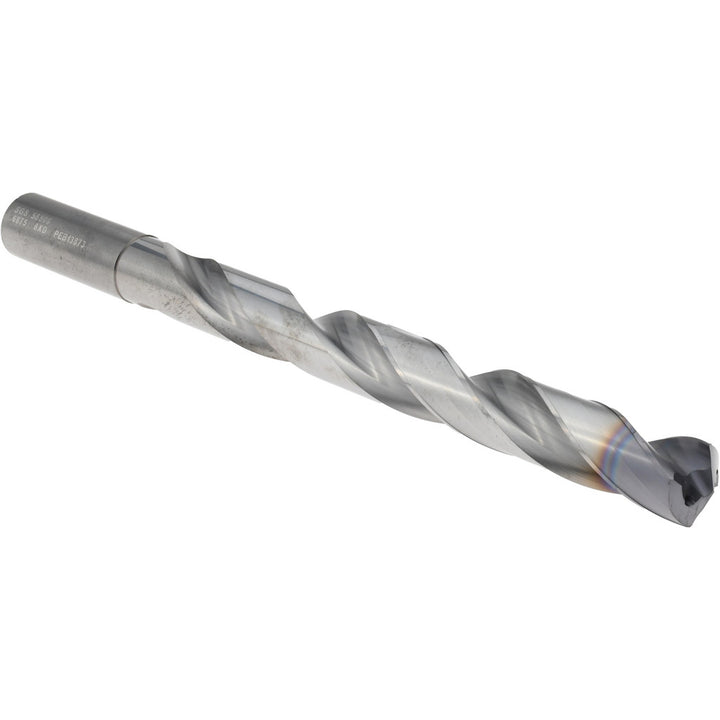

Solid Carbide Drill Bit, Ti-NAMITE-X, 135° point - SGS 56506
MFR# 56506Series 142P
$1,384.59List $1,775.80
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
CoatingTi-NAMITE-X
Description
The SGS 56506 is a Solid Carbide drill bit with a Ti-NAMITE-X finish, 135° point. Series 142P.
Specifications
Coating finishTi-NAMITE-X
Coolant throughYes
Cutting directionRight Hand
Drill bit diameter tolerance+.00024 to +.00083 in; +0.006 to +0.021 mm
Drill bit gradeHigh Performance
Drill point angle degrees135
Drill point length (mm)3.62
Flute length x diameter ratio8xD
Flute typeSpiral
Material applicationUniversal
Material gradeMicrograin
Overall length5-19/32
Point typeStandard
Shank typeStraight-Cylindrical
Specification designationDIN
Specification numberDIN 6537
Spiral typeRegular
Threaded shankNo
Tool materialSolid Carbide
Web thinningWeb-Thinned
