SGS

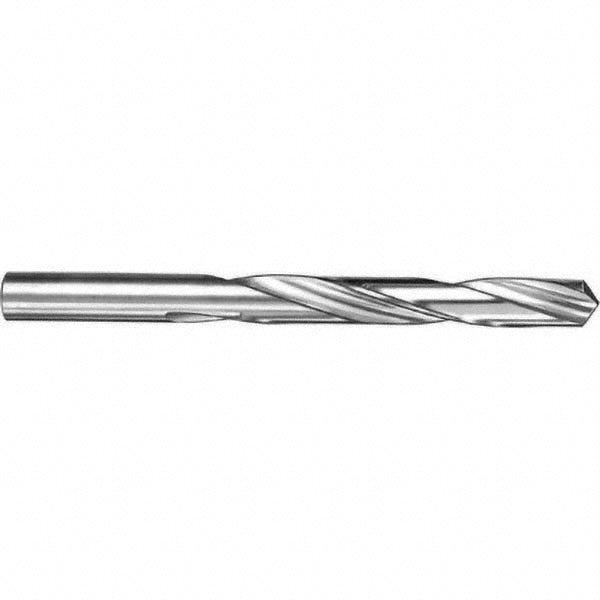

#65 Solid Carbide Drill Bit, Ti-NAMITE-A, 118° point - SGS 57093
MFR# 57093Series 101
$23.88List $30.62
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
CoatingTi-NAMITE-A
Description
The SGS 57093 is a #65 Solid Carbide drill bit with a Ti-NAMITE-A finish, 118° point. 5/8 flute length, 1-3/8 overall length. Series 101.
Specifications
Coating finishTi-NAMITE-A
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to -0.0005 in
Drill bit gradeGeneral Purpose
Drill bit materialSolid Carbide
Drill bit size0.035
Drill bit size range0.0000 - 0.0500
Drill bit size wire#65
Drill point angle degrees118
Flute by diameter ratio5xD
Flute length in5/8
Flute typeSpiral
Material gradeMicrograin
Maximum drilling depth in1/2
Number of flutes2
Overall length in1-3/8
Point typeFour Facet
Shank diameter0.0350
Shank length in3/4
Shank typeStraight-Cylindrical
Spiral typeRegular
StandardsDIN 338
Web configurationTapered
