SGS

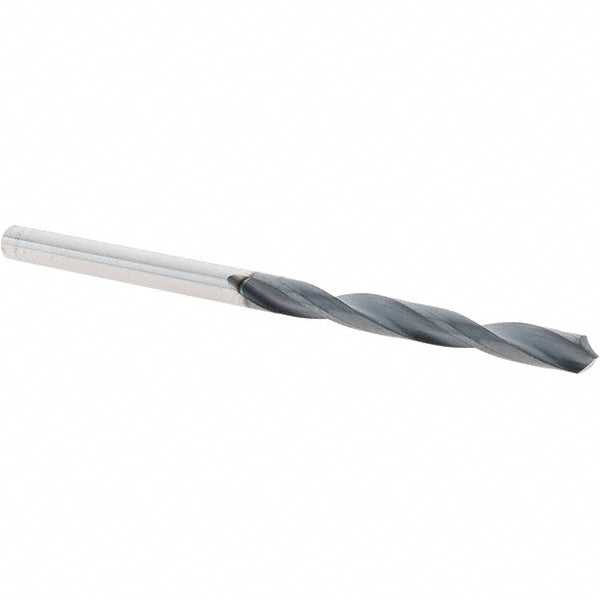

1/8" Solid Carbide Drill Bit, Ti-NAMITE-A, 118° point - SGS 57133
MFR# 57133Series 101
$32.44List $40.88
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size1/8
Flutes2
CoatingTi-NAMITE-A
Description
The SGS 57133 is a 1/8" Solid Carbide drill bit with a Ti-NAMITE-A finish, 118° point. 1-1/4 flute length, 2-1/4 overall length. Series 101.
Specifications
Coating finishTi-NAMITE-A
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to -0.0005 in
Drill bit finish coatingAlTiN
Drill bit gradeGeneral Purpose
Drill bit materialSolid Carbide
Drill bit size in1/8
Drill bit size range0.1000 - 0.1500
Drill point angle degrees118
Flute by diameter ratio5xD
Flute length in1-1/4
Flute typeSpiral
Material gradeMicrograin
Maximum drilling depth in1
Number of flutes2
Overall length in2-1/4
Point typeFour Facet
Shank diameter in1/8
Shank length in1
Shank typeStraight-Cylindrical
Spiral typeRegular
StandardsDIN 338
Web configurationTapered
Web thinningWeb-Thinned
