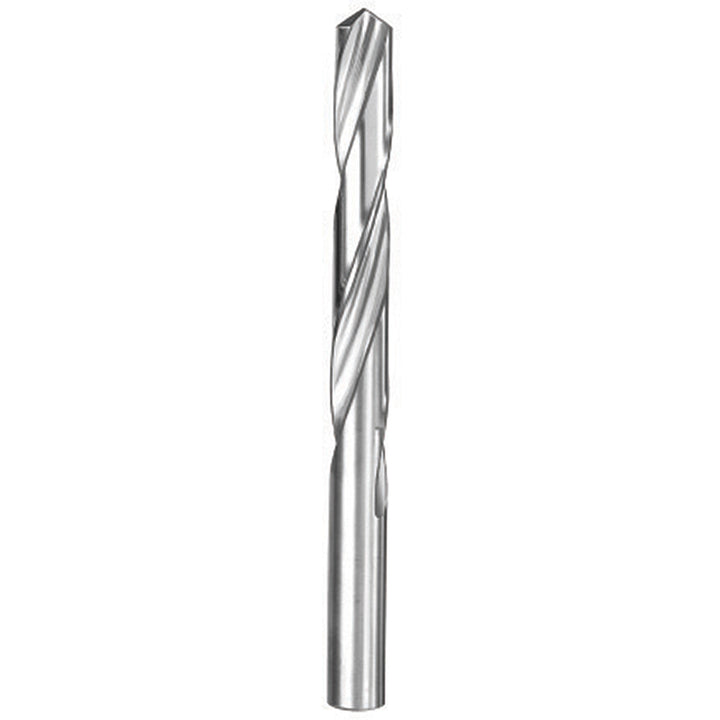

9/64" Solid Carbide Drill Bit, Ti-NAMITE-A, 118° point - SGS 57137
MFR# 57137Series 101
$31.65List $40.59
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size9/64
Flutes2
CoatingTi-NAMITE-A
Description
The SGS 57137 is a 9/64" Solid Carbide drill bit with a Ti-NAMITE-A finish, 118° point. 1-3/8 flute length, 2-1/2 overall length. Series 101.
Specifications
Coating finishTi-NAMITE-A
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to -0.0005 in
Drill bit finish coatingAlTiN
Drill bit gradeGeneral Purpose
Drill bit materialSolid Carbide
Drill bit size in9/64
Drill bit size range0.1000 - 0.1500
Drill point angle degrees118
Flute by diameter ratio5xD
Flute length in1-3/8
Flute typeSpiral
Material gradeMicrograin
Maximum drilling depth in1-7/64
Number of flutes2
Overall length in2-1/2
Point typeFour Facet
Shank diameter in9/64
Shank length in1-1/8
Shank typeStraight-Cylindrical
Spiral typeRegular
StandardsDIN 338
Web configurationTapered
Web thinningWeb-Thinned
