SGS

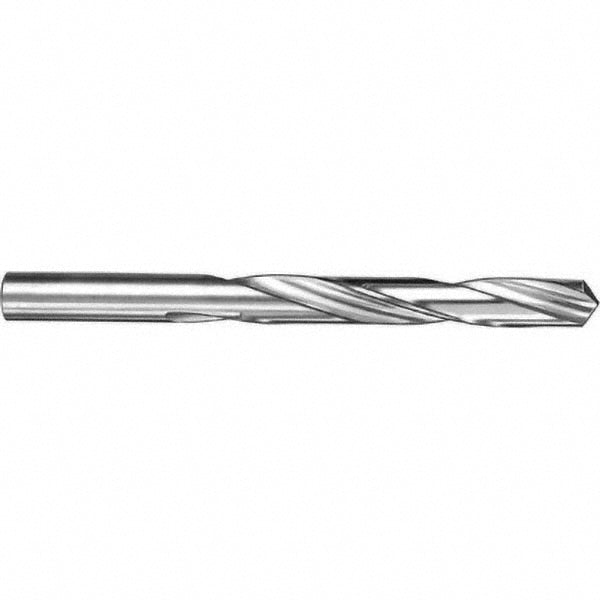

#1 Solid Carbide Drill Bit, Ti-NAMITE-A, 118° point - SGS 57169
MFR# 57169Series 101
$52.26List $67.03
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
CoatingTi-NAMITE-A
Description
The SGS 57169 is a #1 Solid Carbide drill bit with a Ti-NAMITE-A finish, 118° point. 1-3/4 flute length, 3 overall length. Series 101.
Specifications
Coating finishTi-NAMITE-A
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to -0.0005 in
Drill bit gradeGeneral Purpose
Drill bit materialSolid Carbide
Drill bit size0.228
Drill bit size range0.2000 - 0.2500
Drill bit size wire#1
Drill point angle degrees118
Flute by diameter ratio5xD
Flute length in1-3/4
Flute typeSpiral
Material gradeMicrograin
Maximum drilling depth in1-13/32
Number of flutes2
Overall length in3
Point typeFour Facet
Shank diameter0.2280
Shank length in1-1/4
Shank typeStraight-Cylindrical
Spiral typeRegular
StandardsDIN 338
Web configurationTapered
Web thinningWeb-Thinned
