SGS

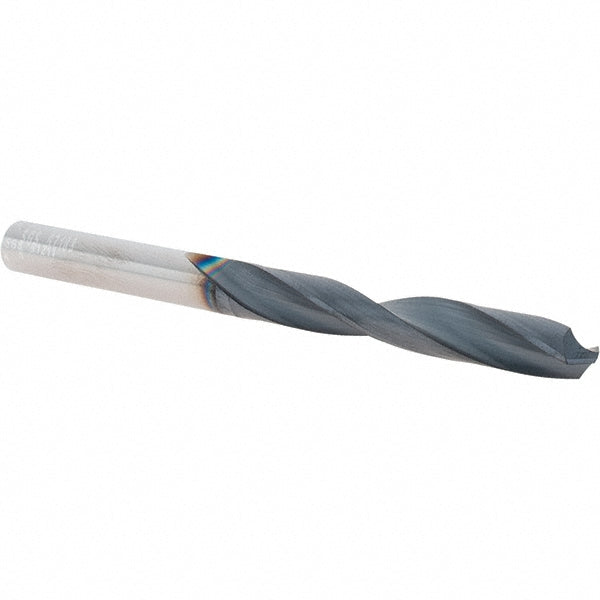

Letter K Solid Carbide Drill Bit, Ti-NAMITE-A, 118° point - SGS 57183
MFR# 57183Series 101
$94.71List $119.36
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
CoatingTi-NAMITE-A
Description
The SGS 57183 is a Letter K Solid Carbide drill bit with a Ti-NAMITE-A finish, 118° point. 2-1/8 flute length, 3-1/2 overall length. Series 101.
Specifications
Coating finishTi-NAMITE-A
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to -0.0005 in
Drill bit finish coatingAlTiN
Drill bit gradeGeneral Purpose
Drill bit materialSolid Carbide
Drill bit size0.281
Drill bit size letterK
Drill bit size range0.2500 - 0.3000
Drill point angle degrees118
Flute by diameter ratio5xD
Flute length in2-1/8
Flute typeSpiral
Material gradeMicrograin
Maximum drilling depth in1-45/64
Number of flutes2
Overall length in3-1/2
Point typeFour Facet
Shank diameter0.2810
Shank length in1-3/8
Shank typeStraight-Cylindrical
Spiral typeRegular
StandardsDIN 338
Web configurationTapered
Web thinningWeb-Thinned
