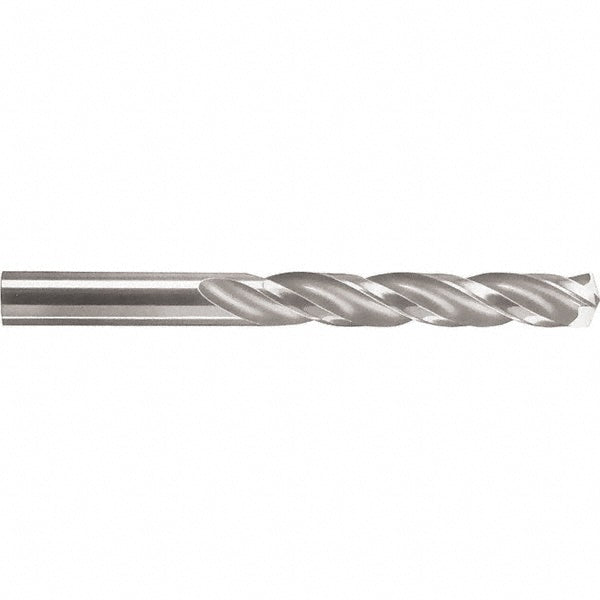

1/8" Solid Carbide Drill Bit, Ti-NAMITE-A, 150° point - SGS 58018

SGS

1/8" Solid Carbide Drill Bit, Ti-NAMITE-A, 150° point - SGS 58018

MFR# 58018Series 103

$45.92List $58.90 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Drill size1/8
Flutes3
CoatingTi-NAMITE-A

Description

The SGS 58018 is a 1/8" Solid Carbide drill bit with a Ti-NAMITE-A finish, 150° point. Suited for cast iron, hardened steel, non-ferrous metal, steel. 1-1/4 flute length, 2-1/4 overall length. Series 103.

Specifications

Coating finishTi-NAMITE-A
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to -0.0005 in
Drill bit finish coatingAlTiN
Drill bit gradeGeneral Purpose
Drill bit materialSolid Carbide
Drill bit size in1/8
Drill bit size range0.1000 - 0.1500
Drill point angle degrees150
Flute by diameter ratio5xD
Flute length in1-1/4
Flute typeSpiral
Material gradeMicrograin
Maximum drilling depth in1
Number of flutes3
Overall length in2-1/4
Point typeStandard
Primary workpiece materialCast Iron; Hardened Steel; Non-Ferrous Metal; Steel
Shank diameter in1/8
Shank length in1
Shank typeStraight-Cylindrical
Spiral typeRegular
StandardsDIN 6539
Web configurationTapered
Web thinningWeb-Thinned
