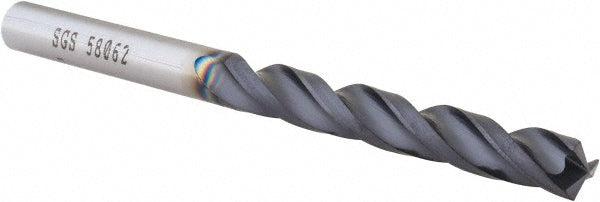

Letter F Solid Carbide Drill Bit, Ti-NAMITE-A, 150° point - SGS 58062

SGS

Letter F Solid Carbide Drill Bit, Ti-NAMITE-A, 150° point - SGS 58062

MFR# 58062Series 103

$87.44List $112.15 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes3
CoatingTi-NAMITE-A

Description

The SGS 58062 is a Letter F Solid Carbide drill bit with a Ti-NAMITE-A finish, 150° point. Suited for cast iron, hardened steel, non-ferrous metal, steel. 2 flute length, 3-1/4 overall length. Series 103.

Specifications

Coating finishTi-NAMITE-A
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to -0.0005 in
Drill bit finish coatingAlTiN
Drill bit gradeGeneral Purpose
Drill bit materialSolid Carbide
Drill bit size0.257
Drill bit size letterF
Drill bit size range0.2500 - 0.3000
Drill point angle degrees150
Flute by diameter ratio5xD
Flute length in2
Flute typeSpiral
Material gradeMicrograin
Maximum drilling depth in1-39/64
Number of flutes3
Overall length in3-1/4
Point typeStandard
Primary workpiece materialCast Iron; Hardened Steel; Non-Ferrous Metal; Steel
Shank diameter0.2570
Shank length in1-1/4
Shank typeStraight-Cylindrical
Spiral typeRegular
StandardsDIN 6539
Web configurationTapered
Web thinningWeb-Thinned
