SGS

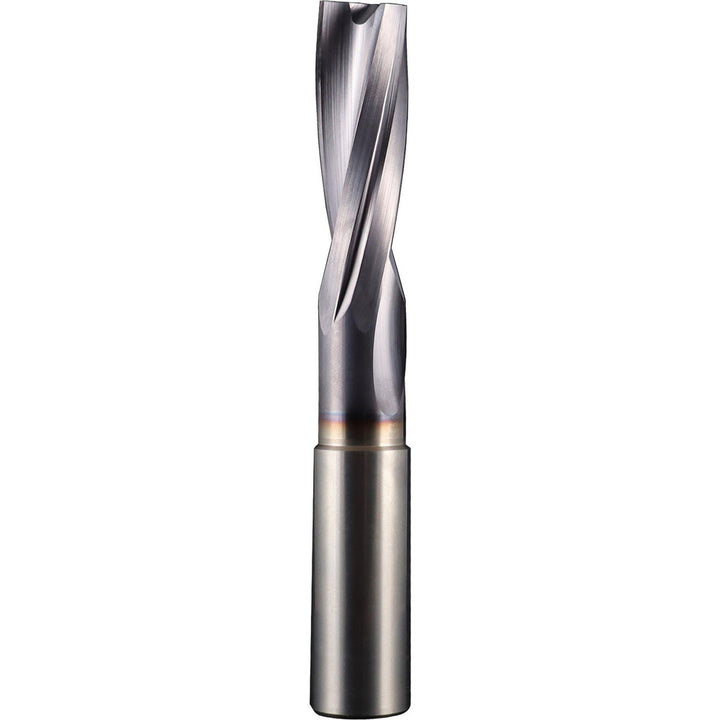

Letter F Solid Carbide Screw Machine Drill Bit, Proprietary, 180° point - SGS 58512
MFR# 58512Series 136U
$101.68List $130.41
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
CoatingProprietary
Description
The SGS 58512 is a Letter F Solid Carbide Screw Machine drill bit with a Proprietary finish, 180° point. Suited for universal. Series 136U.
Specifications
Coating finishProprietary
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.00024 to +0.00083
Drill bit size0.2570
Drill bit size letterF
Drill bit size range0.2500 to 0.3000
Drill length typeScrew Machine
Drill point angle180
Flute by diameter ratio2xD
Flute length (mm)22.85
Flute typeRegular Spiral
Maximum drilling depth (mm)22.85
Number of flutes2
Number of margins4
Overall length2.7559
Point typeFlat Bottom
Primary workpiece materialUniversal
Shank diameter0.3150
Shank length1.8598
Shank typeStraight
Spiral typeRegular
Tool materialSolid Carbide
Tool performanceHigh Performance
