SGS

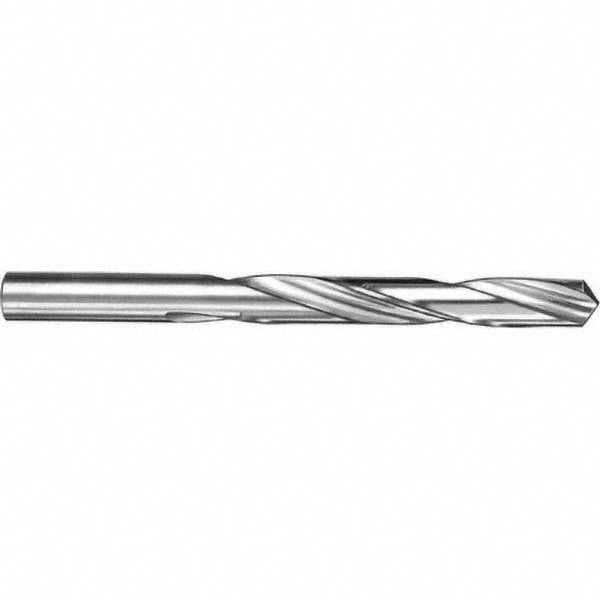

0.1575" Solid Carbide Drill Bit, 118° point - SGS 61019
MFR# 61019Series 101
$28.51List $36.57
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Description
The SGS 61019 is a 0.1575" Solid Carbide drill bit, 118° point. Series 101.
Specifications
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to -0.0005 in; +0.0000 to -0.0127 mm
Drill bit finish coatingBright/Uncoated
Drill bit gradeGeneral Purpose
Drill bit materialSolid Carbide
Drill bit size0.1575
Drill bit size range0.1500 - 0.2000
Drill point angle degrees118
Flute by diameter ratio5xD
Flute length1.6929
Flute typeSpiral
Material gradeMicrograin
Maximum drilling depth1.3386
Number of flutes2
Overall length2.9528
Point typeFour Facet
Shank diameter0.1575
Shank length1.2598
Shank typeStraight-Cylindrical
Spiral typeRegular
StandardsDIN 338
Web configurationTapered
Web thinningWeb-Thinned
