SGS

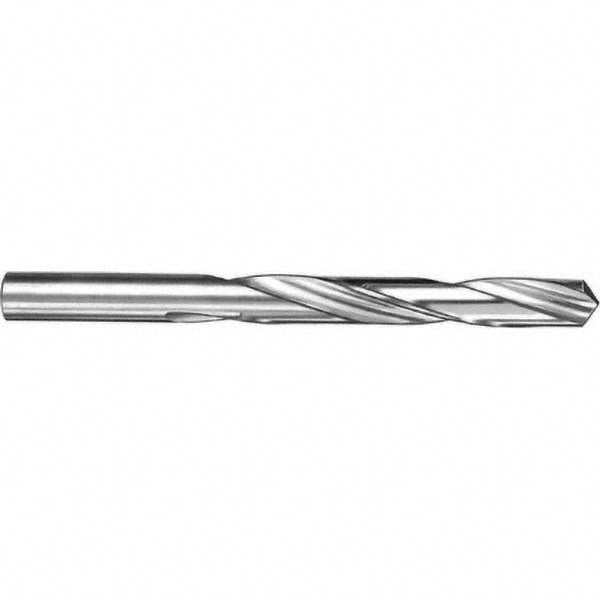

0.0945" Solid Carbide Drill Bit, 118° point - SGS 61063
MFR# 61063Series 101
$20.83List $26.71
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Description
The SGS 61063 is a 0.0945" Solid Carbide drill bit, 118° point. Series 101.
Specifications
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to -0.0005 in; +0.0000 to -0.0127 mm
Drill bit finish coatingBright/Uncoated
Drill bit gradeGeneral Purpose
Drill bit materialSolid Carbide
Drill bit size0.0945
Drill bit size range0.0500 - 0.1000
Drill point angle degrees118
Flute by diameter ratio5xD
Flute length1.1811
Flute typeSpiral
Material gradeMicrograin
Maximum drilling depth0.9449
Number of flutes2
Overall length2.2441
Point typeFour Facet
Shank diameter0.0945
Shank length1.0630
Shank typeStraight-Cylindrical
Spiral typeRegular
StandardsDIN 338
Web configurationTapered
Web thinningWeb-Thinned
