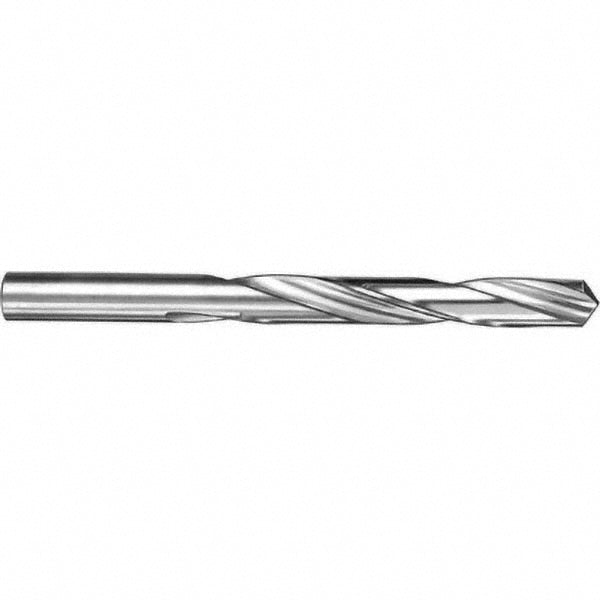

0.126" Solid Carbide Drill Bit, 118° point - SGS 61069
MFR# 61069Series 101
$28.26List $36.25
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Description
The SGS 61069 is a 0.126" Solid Carbide drill bit, 118° point. Series 101.
Specifications
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to -0.0005 in; +0.0000 to -0.0127 mm
Drill bit finish coatingBright/Uncoated
Drill bit gradeGeneral Purpose
Drill bit materialSolid Carbide
Drill bit size0.126
Drill bit size range0.1000 - 0.1500
Drill point angle degrees118
Flute by diameter ratio5xD
Flute length1.4173
Flute typeSpiral
Material gradeMicrograin
Maximum drilling depth1.1024
Number of flutes2
Overall length2.5591
Point typeFour Facet
Shank diameter0.1260
Shank length1.1417
Shank typeStraight-Cylindrical
Spiral typeRegular
StandardsDIN 338
Web configurationTapered
Web thinningWeb-Thinned
