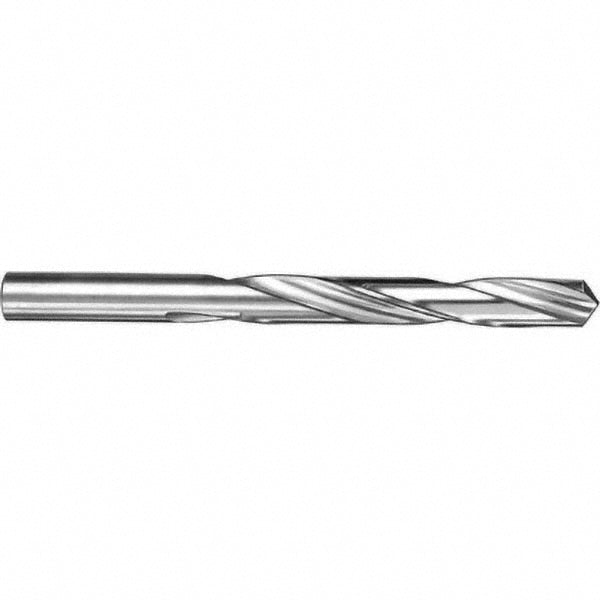

#12 Solid Carbide Drill Bit, 118° point - SGS 61082
MFR# 61082Series 101
$40.39List $51.80
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Description
The SGS 61082 is a #12 Solid Carbide drill bit, 118° point. Series 101.
Specifications
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to -0.0005 in; +0.0000 to -0.0127 mm
Drill bit gradeGeneral Purpose
Drill bit materialSolid Carbide
Drill bit size0.189
Drill bit size range0.1500 - 0.2000
Drill bit size wire#12
Drill point angle degrees118
Flute by diameter ratio5xD
Flute length2.0472
Flute typeSpiral
Material gradeMicrograin
Maximum drilling depth1.6142
Number of flutes2
Overall length3.3858
Point typeFour Facet
Shank diameter0.1890
Shank length1.3386
Shank typeStraight-Cylindrical
Spiral typeRegular
StandardsDIN 338
Web configurationTapered
Web thinningWeb-Thinned
