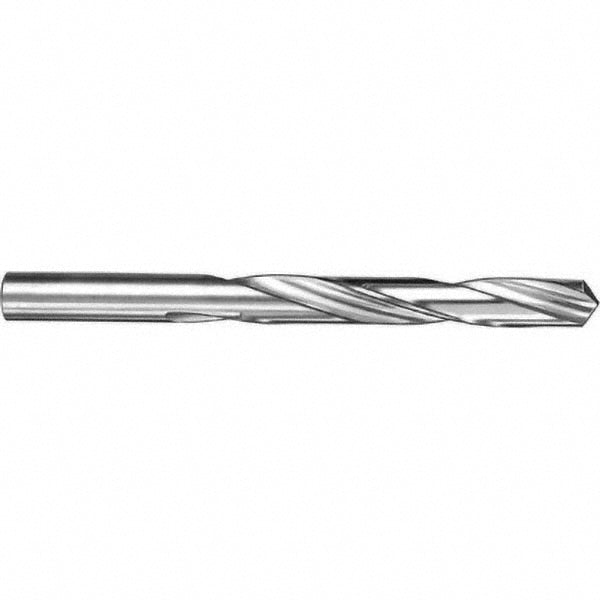

0.2795" Solid Carbide Drill Bit, 118° point - SGS 61100
MFR# 61100Series 101
$105.01List $132.33
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Description
The SGS 61100 is a 0.2795" Solid Carbide drill bit, 118° point. Suited for steel, cast iron, aluminum & non-ferrous. Series 101.
Specifications
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to -0.0005 in; +0.0000 to -0.0127 mm
Drill bit gradeGeneral Purpose
Drill bit materialSolid Carbide
Drill bit size0.2795
Drill bit size range0.2500 - 0.3000
Drill point angle degrees118
Flute by diameter ratio5xD
Flute length2.7165
Flute typeRegular Spiral
Material gradeMicrograin
Maximum drilling depth2.1654
Number of flutes2
Overall length4.2913
Point type4 Facet
Primary workpiece materialSteel; Cast Iron; Aluminum & Non-Ferrous
Shank diameter0.2795
Shank length1.5748
Shank typeStraight
Spiral typeRegular
StandardsDIN 338
Web configurationTapered
Web thinningWeb-Thinned
