SGS

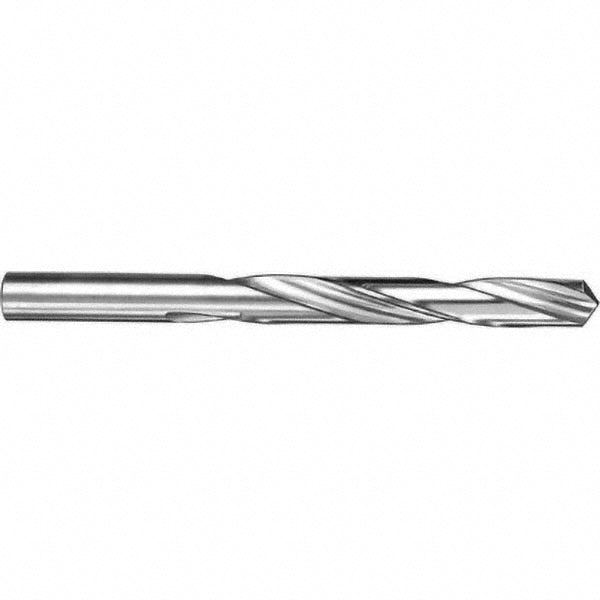

0.2874" Solid Carbide Drill Bit, 118° point - SGS 61102
MFR# 61102Series 101
$78.60List $100.81
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Description
The SGS 61102 is a 0.2874" Solid Carbide drill bit, 118° point. Series 101.
Specifications
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance-0.0005 to 0.0000 in; -0.0127 to 0.0000 mm
Drill bit finish coatingBright/Uncoated
Drill bit materialSolid Carbide
Drill bit size0.2874
Drill bit size range0.2500 - 0.3000
Drill point angle degrees118
Flute by diameter ratio5xD
Flute length2.7200
Flute typeSpiral
Material gradeMicrograin
Maximum drilling depth (mm)55.00
Number of flutes2
Overall length (mm)109.00
Point typeFaceted
Shank diameter0.2874
Shank length1.6400
Shank typeStraight-Cylindrical
Specification designationDIN
Specification numberDIN 338
Spiral typeRegular
StandardsDIN 338
Web configurationTapered
Web thinningWeb-Thinned
