SGS

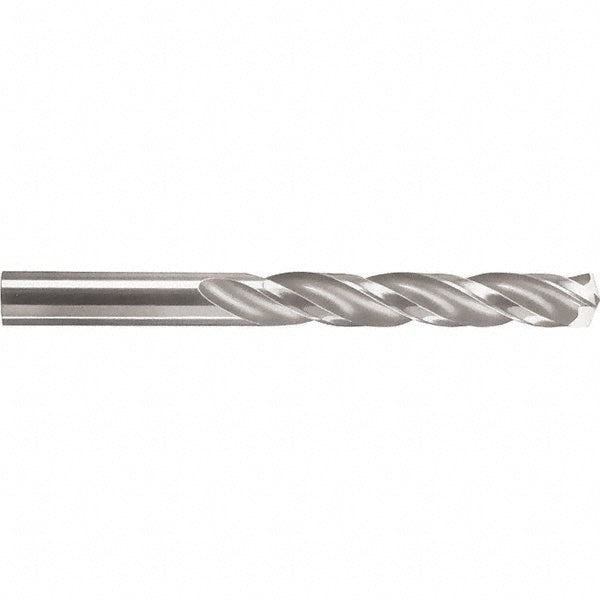

0.3622" Solid Carbide Screw Machine Drill Bit, 150° point - SGS 63024
MFR# 63024Series 103
$125.66List $161.16
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Description
The SGS 63024 is a 0.3622" Solid Carbide Screw Machine drill bit, 150° point. Suited for cast iron, non-ferrous metal, steel. Series 103.
Specifications
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to -0.0005 in; +0.0000 to -0.0127 mm
Drill bit gradeGeneral Purpose
Drill bit size0.3622
Drill bit size range0.3500 to 0.4000
Drill length typeScrew Machine
Drill point angle150
Flute by diameter ratio3xD
Flute length1.5748
Flute typeSpiral
Material gradeMicrograin
Maximum drilling depth1.1417
Number of flutes3
Overall length3.3071
Point typeStandard
Primary workpiece materialCast Iron; Non-Ferrous Metal; Steel
Shank diameter (mm)9.20
Shank length1.7323
Shank typeStraight-Cylindrical
Spiral typeRegular
Tool materialSolid Carbide
Web configurationTapered
Web thinningWeb-Thinned
