SGS

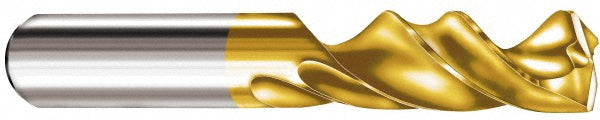

0.1339" Solid Carbide Screw Machine Drill Bit, AlTiN, 145° point - SGS 63158
MFR# 63158Series 135M
$118.71List $152.25
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
CoatingAlTiN
Description
The SGS 63158 is a 0.1339" Solid Carbide Screw Machine drill bit with a AlTiN finish, 145° point. Suited for alloy, titanium. Series 135M.
Specifications
Coating finishAlTiN
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0050 to +0.0152 mm
Drill bit size0.1339
Drill bit size range0.1000 to 0.1500
Drill length typeScrew Machine
Drill point angle145
Flute by diameter ratio3xD
Flute length (mm)20.00
Flute typeRegular Spiral
Maximum drilling depth (mm)14.00
Number of flutes2
Number of margins2
Overall length2.4409
Point typeNotched
Primary workpiece materialAlloy; Titanium
Shank diameter0.2362
Shank length1.4173
Shank typeStraight
Spiral typeRegular
Tool materialSolid Carbide
Web configurationTapered
Web thinningWeb-Thinned
