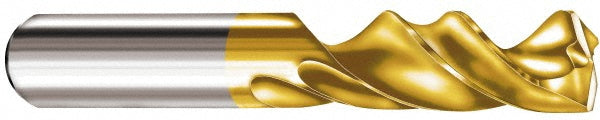

0.3465" Solid Carbide Screw Machine Drill Bit, AlTiN, 145° point - SGS 63184
MFR# 63184Series 135M
$200.16List $256.71
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
CoatingAlTiN
Description
The SGS 63184 is a 0.3465" Solid Carbide Screw Machine drill bit with a AlTiN finish, 145° point. Suited for alloy, titanium. Series 135M.
Specifications
Coating finishAlTiN
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0050 to +0.0200 mm
Drill bit size0.3465
Drill bit size range0.3000 to 0.3500
Drill length typeScrew Machine
Drill point angle145
Flute by diameter ratio3xD
Flute length (mm)47.00
Flute typeRegular Spiral
Maximum drilling depth (mm)35.00
Number of flutes2
Number of margins2
Overall length3.5039
Point typeNotched
Primary workpiece materialAlloy; Titanium
Shank diameter0.3937
Shank length1.5748
Shank typeStraight
Spiral typeRegular
Tool materialSolid Carbide
Web configurationTapered
Web thinningWeb-Thinned
