SGS
0.3543" Carbide Drill Bit, Coated, 140° point - SGS 66032
MFR# 66032Series 106
$91.38List $117.20
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
CoatingCoated
Description

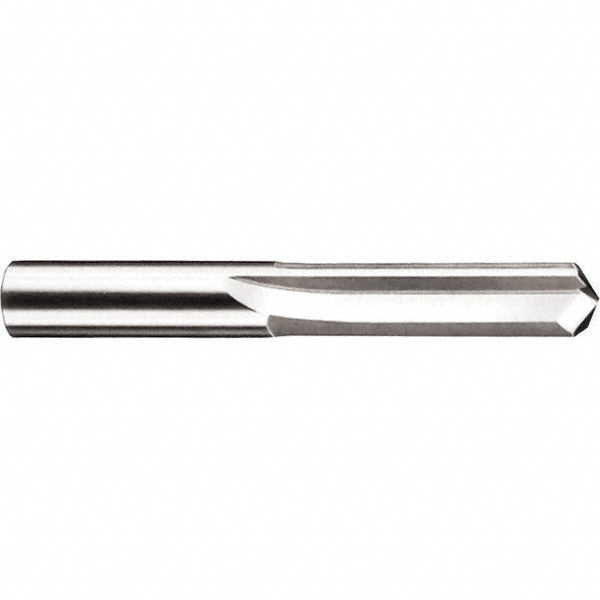

The SGS 66032 is a 0.3543" Carbide drill bit with a Coated finish, 140° point. Suited for cast iron, hardened steel, steel. Series 106.
Specifications
Coating finishCoated
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to +0.0005 in
Drill bit size0.3543
Drill bit typeStraight-Flute
Drill point angle140
Flute by diameter ratio3xD
Flute length (mm)40.00
Material gradeMicrograin
Maximum drilling depth (mm)29.00
Number of flutes2
Overall length (mm)84.00
Point typeStandard
Primary workpiece materialCast Iron; Hardened Steel; Steel
Secondary workpiece materialHardened Materials
Shank diameter (mm)9.00
Shank length (mm)44.00
StandardsDIN 6539
Tool materialCarbide
Web thinningWeb-Thinned
