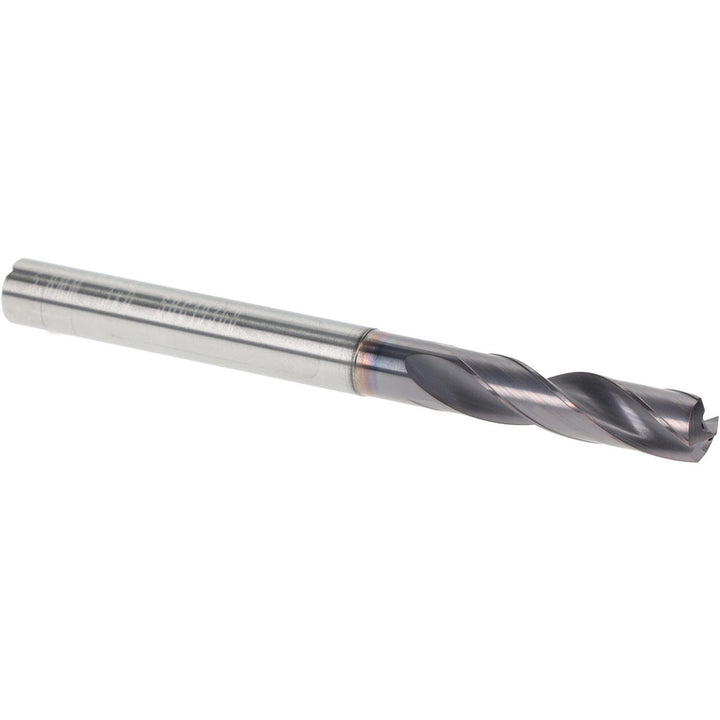

11/64" Solid Carbide Screw Machine Drill Bit, Ti-NAMITE-X, 135° point - SGS 66428

SGS

11/64" Solid Carbide Screw Machine Drill Bit, Ti-NAMITE-X, 135° point - SGS 66428

MFR# 66428Series 142P

$138.06List $177.07 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Drill size11/64
Flutes2
CoatingTi-NAMITE-X

Description

The SGS 66428 is a 11/64" Solid Carbide Screw Machine drill bit with a Ti-NAMITE-X finish, 135° point. Suited for universal. 15/16 flute length. Series 142P.

Specifications

Coating finishTi-NAMITE-X
Coolant throughYes
Cutting directionRight Hand
Drill bit diameter tolerance+0.00016 to +0.00063 in; +0.004 to +0.016 mm
Drill bit gradeHigh Performance
Drill bit size in11/64
Drill bit size range0.2000 to 0.2500
Drill length typeScrew Machine
Drill point angle135
Drill point length0.0473
Flute by diameter ratio3xD
Flute length in15/16
Flute typeSpiral
Material gradeMicrograin
Maximum drilling depth1.1024
Number of flutes2
Number of margins4
Overall length2.5984
Point typeStandard
Primary workpiece materialUniversal
Shank diameter0.2300
Shank length1.4173
Shank typeStraight-Cylindrical
Specification designationDIN
Specification numberDIN 6537
Spiral typeRegular
Tool materialSolid Carbide
Tool performanceHigh Performance
Web thinningWeb-Thinned
