SGS
6.10mm Solid Carbide Screw Machine Drill Bit, Proprietary, 135° point - SGS 66431
MFR# 66431Series 142P
$191.45List $241.28
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
CoatingProprietary
Description

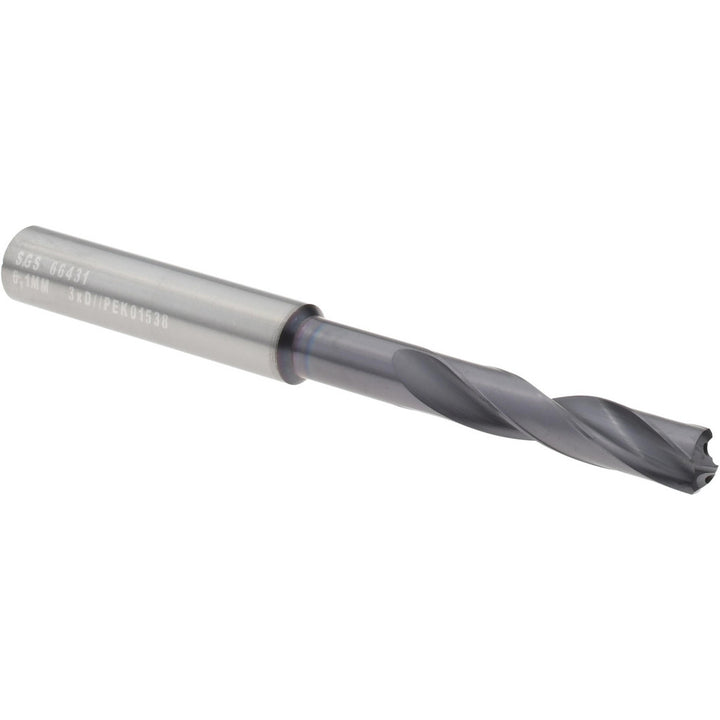

The SGS 66431 is a 6.10mm Solid Carbide Screw Machine drill bit with a Proprietary finish, 135° point. Suited for universal. 2-5/32 flute length. Series 142P.
Specifications
Coating finishProprietary
Coolant throughYes
Cutting directionRight Hand
Drill bit diameter tolerance+0.00028 to +0.00098 in; +0.007 to +0.025 mm
Drill bit gradeHigh Performance
Drill bit size (mm)6.10
Drill bit size range0.2000 to 0.2500
Drill length typeScrew Machine
Drill point angle135
Drill point length0.0497
Flute by diameter ratio3xD
Flute length in2-5/32
Flute typeRegular Spiral
Material gradeMicrograin
Maximum drilling depth1.3386
Number of flutes2
Number of margins4
Overall length3.1102
Point typeStandard
Primary workpiece materialUniversal
Shank diameter0.4700
Shank length1.4173
Shank typeStraight
Specification designationDIN
Specification numberDIN 6537
Spiral typeRegular
Tool materialSolid Carbide
Tool performanceHigh Performance
Web thinningWeb-Thinned
