SGS

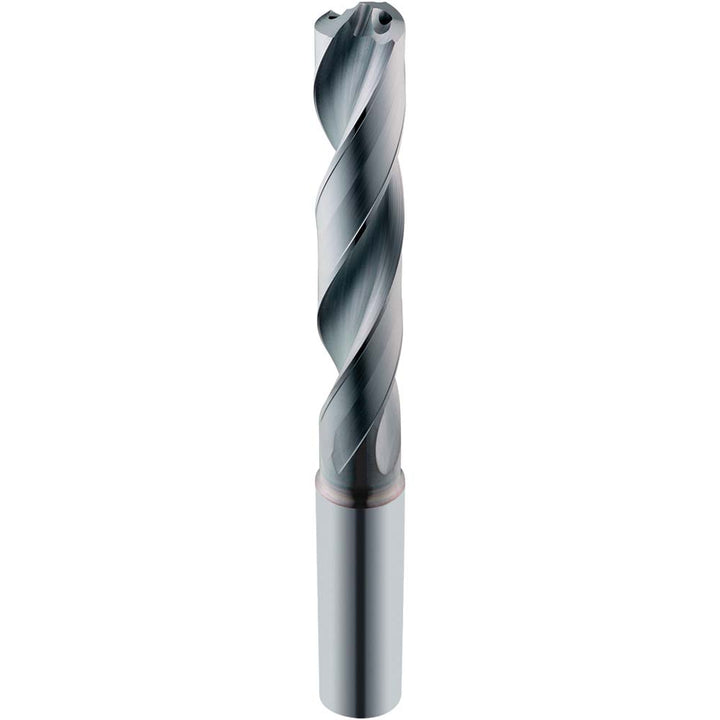

1/2" Solid Carbide Screw Machine Drill Bit, Coated, 135° point - SGS 66435
MFR# 66435Series 142P
$210.60List $265.41
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size1/2
Flutes2
CoatingCoated
Description
The SGS 66435 is a 1/2" Solid Carbide Screw Machine drill bit with a Coated finish, 135° point. Suited for universal. 2-23/64 flute length. Series 142P.
Specifications
Coating finishCoated
Coolant throughYes
Cutting directionRight Hand
Drill bit diameter tolerance+0.00028 to +0.00098 in; +0.007 to +0.025 mm
Drill bit gradeHigh Performance
Drill bit size in1/2
Drill bit size range0.2500 to 0.3000
Drill length typeScrew Machine
Drill point angle135
Drill point length0.0530
Flute by diameter ratio3xD
Flute length in2-23/64
Flute typeSpiral
Material gradeMicrograin
Maximum drilling depth1.3386
Number of flutes2
Number of margins4
Overall length3.11020
Point typeStandard
Primary workpiece materialUniversal
Shank diameter (mm)8.0010
Shank length1.4173
Shank typeStraight-Cylindrical
Specification designationDIN
Specification numberDIN 6537
Spiral typeRegular
Tool materialSolid Carbide
Tool performanceHigh Performance
Web thinningWeb-Thinned
