37/64" Solid Carbide Screw Machine Drill Bit, Coated, 135° point - SGS 66438

SGS

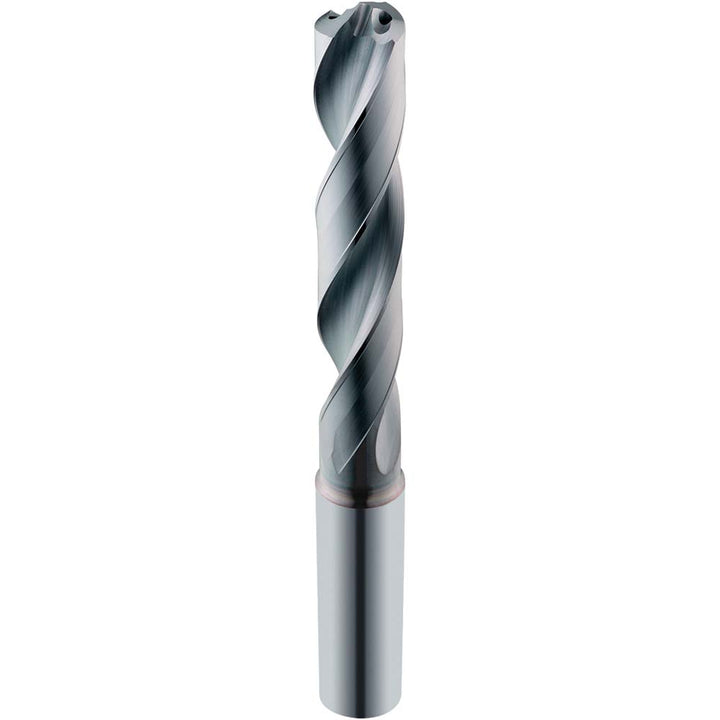

37/64" Solid Carbide Screw Machine Drill Bit, Coated, 135° point - SGS 66438

MFR# 66438Series 142P

$156.78List $201.07 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Drill size37/64
Flutes2
CoatingCoated

Description

The SGS 66438 is a 37/64" Solid Carbide Screw Machine drill bit with a Coated finish, 135° point. Suited for universal. 2-35/64 flute length. Series 142P.

Specifications

Coating finishCoated
Coolant throughYes
Cutting directionRight Hand
Drill bit diameter tolerance+0.00028 to +0.00098 in; +0.007 to +0.025 mm
Drill bit gradeHigh Performance
Drill bit size in37/64
Drill bit size range0.2500 to 0.3000
Drill length typeScrew Machine
Drill point angle135
Drill point length0.0554
Flute by diameter ratio3xD
Flute length in2-35/64
Flute typeSpiral
Material gradeMicrograin
Maximum drilling depth1.3386
Number of flutes2
Number of margins4
Overall length3.11020
Point typeStandard
Primary workpiece materialUniversal
Shank diameter (mm)8.0010
Shank length1.4173
Shank typeStraight-Cylindrical
Specification designationDIN
Specification numberDIN 6537
Spiral typeRegular
Tool materialSolid Carbide
Tool performanceHigh Performance
Web thinningWeb-Thinned
