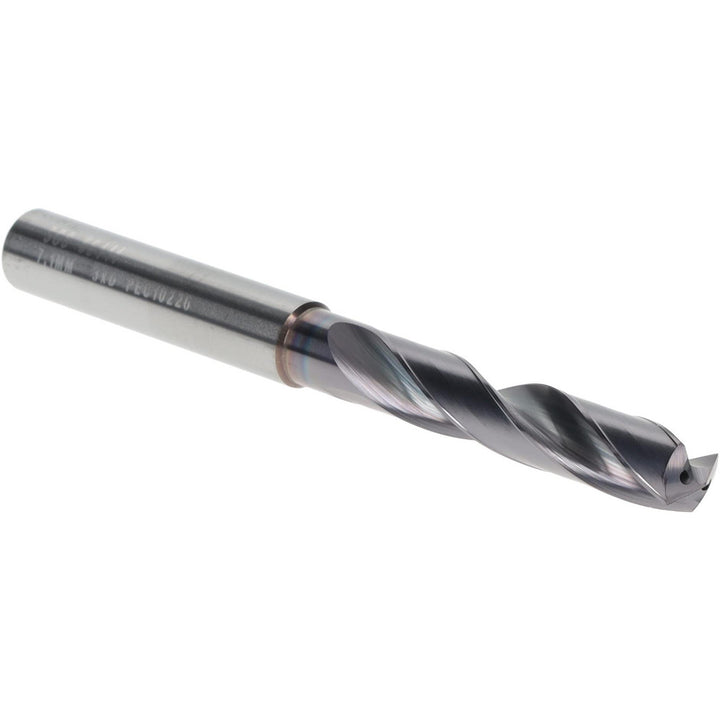

19/64" Solid Carbide Screw Machine Drill Bit, Ti-NAMITE-X, 135° point - SGS 66441

SGS

19/64" Solid Carbide Screw Machine Drill Bit, Ti-NAMITE-X, 135° point - SGS 66441

MFR# 66441Series 142P

$167.34List $214.62 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Drill size19/64
Flutes2
CoatingTi-NAMITE-X

Description

The SGS 66441 is a 19/64" Solid Carbide Screw Machine drill bit with a Ti-NAMITE-X finish, 135° point. Suited for universal. 1-39/64 flute length. Series 142P.

Specifications

Coating finishTi-NAMITE-X
Coolant throughYes
Cutting directionRight Hand
Drill bit diameter tolerance+0.00024 to +0.00083 in; +0.006 to +0.021 mm
Drill bit gradeHigh Performance
Drill bit size in19/64
Drill bit size range0.2500 to 0.3000
Drill length typeScrew Machine
Drill point angle135
Drill point length0.0579
Flute by diameter ratio3xD
Flute length in1-39/64
Flute typeSpiral
Material gradeMicrograin
Maximum drilling depth1.6142
Number of flutes2
Number of margins4
Overall length3.1102
Point typeStandard
Primary workpiece materialUniversal
Shank diameter0.3100
Shank length1.4173
Shank typeStraight-Cylindrical
Specification designationDIN
Specification numberDIN 6537
Spiral typeRegular
Tool materialSolid Carbide
Tool performanceHigh Performance
Web thinningWeb-Thinned
