SGS

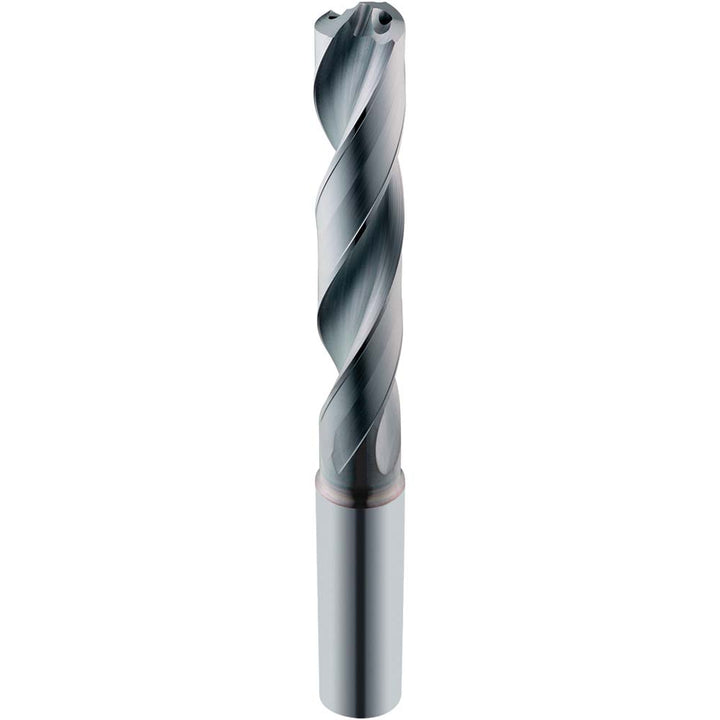

11/32" Solid Carbide Screw Machine Drill Bit, Coated, 135° point - SGS 66445
MFR# 66445Series 142P
$167.34List $214.62
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size11/32
Flutes2
CoatingCoated
Description
The SGS 66445 is a 11/32" Solid Carbide Screw Machine drill bit with a Coated finish, 135° point. Suited for universal. Series 142P.
Specifications
Coating finishCoated
Coolant throughYes
Cutting directionRight Hand
Drill bit diameter tolerance+0.00024 to +0.00083 in; +0.006 to +0.021 mm
Drill bit gradeHigh Performance
Drill bit size in11/32
Drill bit size range0.2500 to 0.3000
Drill length typeScrew Machine
Drill point angle135
Drill point length0.0612
Flute by diameter ratio3xD
Flute length1.6142
Flute typeSpiral
Material gradeMicrograin
Maximum drilling depth1.6142
Number of flutes2
Number of margins4
Overall length3.11020
Point typeStandard
Primary workpiece materialUniversal
Shank diameter (mm)8.0010
Shank length1.4173
Shank typeStraight-Cylindrical
Specification designationDIN
Specification numberDIN 6537
Spiral typeRegular
Tool materialSolid Carbide
Tool performanceHigh Performance
Web thinningWeb-Thinned
