SGS

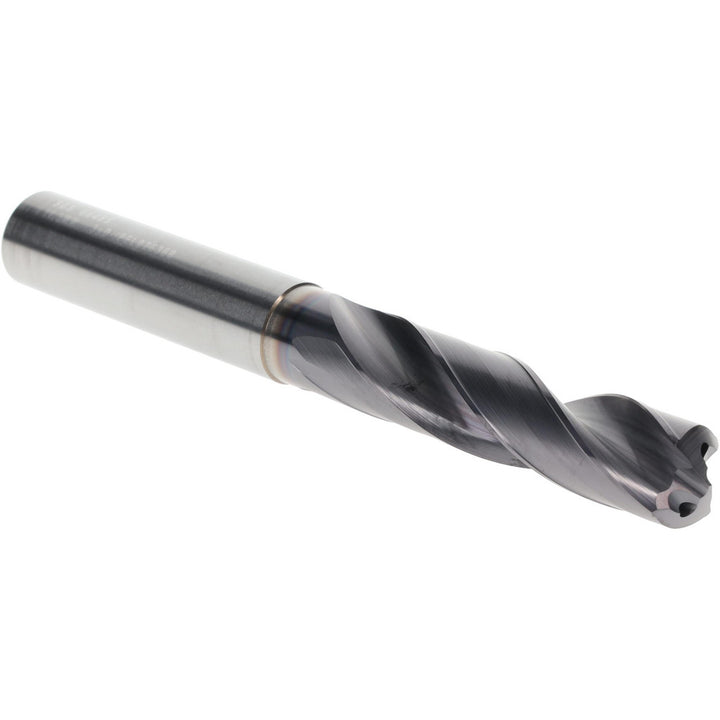

15/64" Solid Carbide Screw Machine Drill Bit, Ti-NAMITE-X, 135° point - SGS 66485
MFR# 66485Series 142P
$253.90List $325.64
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size15/64
Flutes2
CoatingTi-NAMITE-X
Description
The SGS 66485 is a 15/64" Solid Carbide Screw Machine drill bit with a Ti-NAMITE-X finish, 135° point. Suited for universal. Series 142P.
Specifications
Coating finishTi-NAMITE-X
Coolant throughYes
Cutting directionRight Hand
Drill bit diameter tolerance+0.00016 to +0.00063 in; +0.004 to +0.016 mm
Drill bit gradeHigh Performance
Drill bit size in15/64
Drill bit size range0.4500 to 0.5000
Drill length typeScrew Machine
Drill point angle135
Drill point length0.0938
Flute by diameter ratio3xD
Flute length2.1654
Flute typeSpiral
Material gradeMicrograin
Maximum drilling depth2.1654
Number of flutes2
Number of margins4
Overall length4.0157
Point typeStandard
Primary workpiece materialUniversal
Shank diameter0.2300
Shank length1.7717
Shank typeStraight-Cylindrical
Specification designationDIN
Specification numberDIN 6537
Spiral typeRegular
Tool materialSolid Carbide
Tool performanceHigh Performance
Web thinningWeb-Thinned
