0.5906" Solid Carbide Screw Machine Drill Bit, Coated, 135° point - SGS 66499

MFR# 66499Series 142P

$454.98List $583.54 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2
CoatingCoated

Description

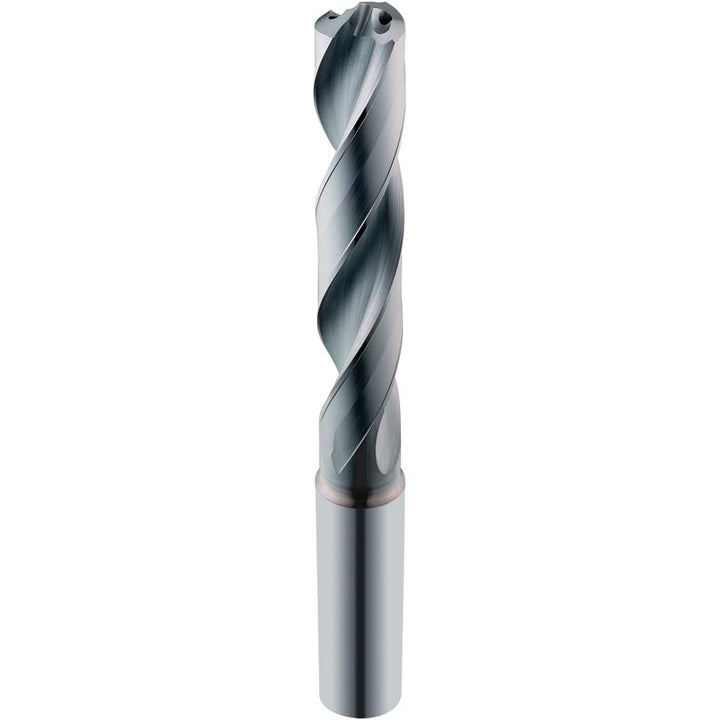

The SGS 66499 is a 0.5906" Solid Carbide Screw Machine drill bit with a Coated finish, 135° point. Suited for universal. 2-35/64 flute length. Series 142P.

Specifications

Coating finishCoated
Coolant throughYes
Cutting directionRight Hand
Drill bit diameter tolerance+0.00028 to +0.00098 in; +0.007 to +0.025 mm
Drill bit gradeHigh Performance
Drill bit size0.5906
Drill bit size range0.5000 to 0.6000
Drill length typeScrew Machine
Drill point angle135
Drill point length0.1223
Flute by diameter ratio3xD
Flute length in2-35/64
Flute typeSpiral
Material gradeMicrograin
Maximum drilling depth2.5591
Number of flutes2
Number of margins4
Overall length4.52760
Point typeStandard
Primary workpiece materialUniversal
Shank diameter (mm)15.9995
Shank length1.8898
Shank typeStraight-Cylindrical
Specification designationDIN
Specification numberDIN 6537
Spiral typeRegular
Tool materialSolid Carbide
Tool performanceHigh Performance
Web thinningWeb-Thinned
