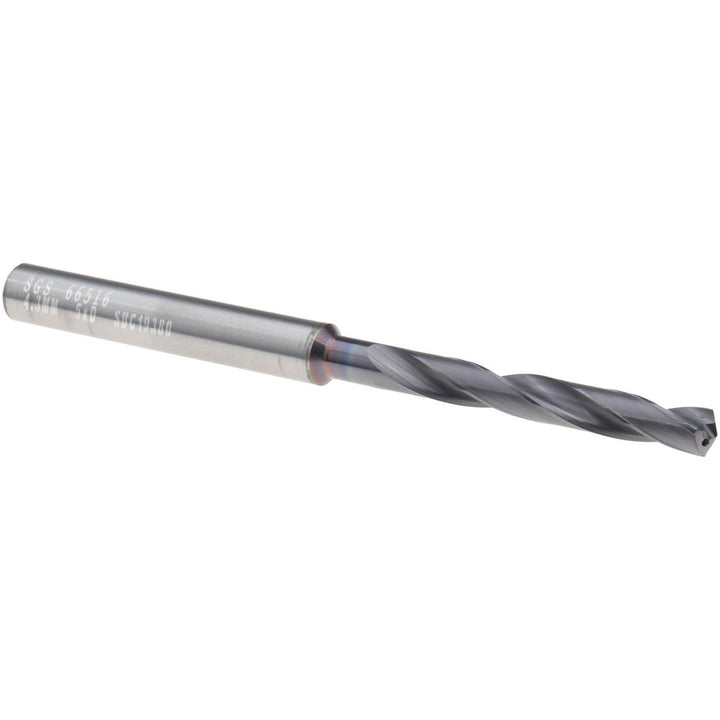

0.1693" Solid Carbide Drill Bit, Ti-NAMITE-X, 135° point - SGS 66516
MFR# 66516Series 142P
$169.58List $217.50
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
CoatingTi-NAMITE-X
Description
The SGS 66516 is a 0.1693" Solid Carbide drill bit with a Ti-NAMITE-X finish, 135° point. Series 142P.
Specifications
Coating finishTi-NAMITE-X
Coolant throughYes
Cutting directionRight Hand
Drill bit diameter tolerance+.00024 to +.00083 in; +0.006 to +0.021 mm
Drill bit gradeHigh Performance
Drill bit materialSolid Carbide
Drill bit size0.1693
Drill bit size range0.1500 - 0.2000
Drill point angle degrees135
Drill point length0.0351
Flute by diameter ratio5xD
Flute length1.4173
Flute typeSpiral
Material gradeMicrograin
Maximum drilling depth1.6929
Number of flats0
Number of flutes2
Overall length2.9134
Point typeStandard
Shank diameter0.3900
Shank length1.4173
Shank typeStraight-Cylindrical
Specification designationDIN
Specification numberDIN 6537
Web thinningWeb-Thinned
