SGS

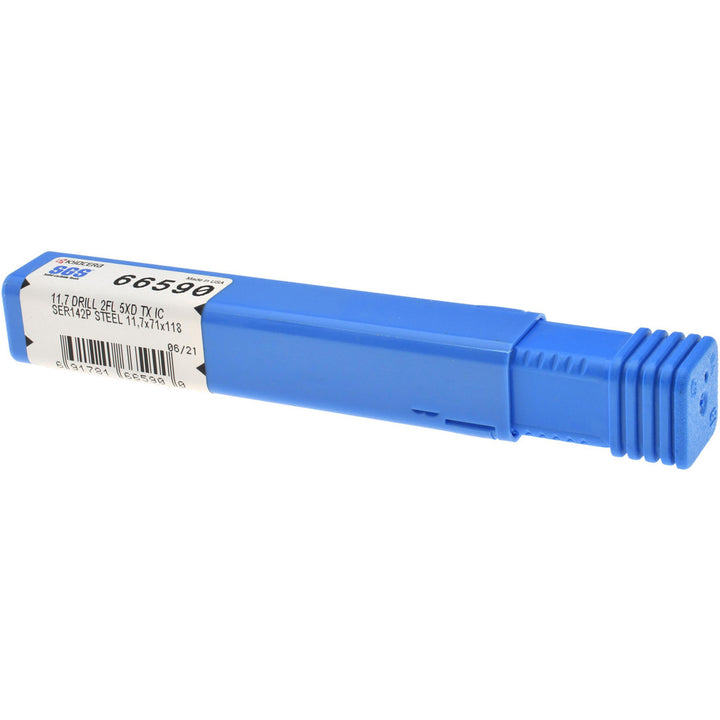

0.4606" Solid Carbide Drill Bit, Ti-NAMITE-X, 135° point - SGS 66590
MFR# 66590Series 142P
$317.82List $407.62
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
CoatingTi-NAMITE-X
Description
The SGS 66590 is a 0.4606" Solid Carbide drill bit with a Ti-NAMITE-X finish, 135° point. Series 142P.
Specifications
Coating finishTi-NAMITE-X
Coolant throughYes
Cutting directionRight Hand
Drill bit diameter tolerance+.00024 to +.00083 in; +0.006 to +0.021 mm
Drill bit gradeHigh Performance
Drill bit materialSolid Carbide
Drill bit size0.4606
Drill bit size range0.4000 - 0.5000
Drill point angle degrees135
Drill point length0.0954
Flute by diameter ratio5xD
Flute length2.7953
Flute typeSpiral
Material gradeMicrograin
Maximum drilling depth2.2047
Number of flats0
Number of flutes2
Overall length4.6457
Point typeStandard
Shank diameter0.3900
Shank length1.7717
Shank typeStraight-Cylindrical
Specification designationDIN
Specification numberDIN 6537
Web thinningWeb-Thinned
