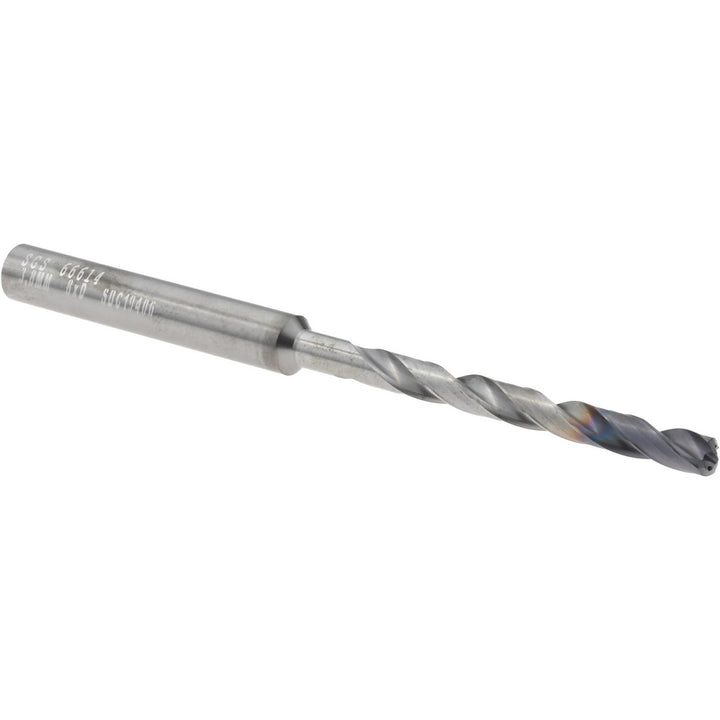

Solid Carbide Drill Bit, Ti-NAMITE-X, 135° point - SGS 66614
MFR# 66614Series 142P
$252.16List $323.40
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
CoatingTi-NAMITE-X
Description
The SGS 66614 is a Solid Carbide drill bit with a Ti-NAMITE-X finish, 135° point. 1-11/16 flute length. Series 142P.
Specifications
Coating finishTi-NAMITE-X
Coolant throughYes
Cutting directionRight Hand
Drill bit diameter tolerance+.00016 to +.00063 in; +0.004 to +0.016 mm
Drill bit gradeHigh Performance
Drill point angle degrees135
Drill point length0.0310
Flute length in1-11/16
Flute length x diameter ratio8xD
Flute typeSpiral
Material applicationUniversal
Material gradeMicrograin
Maximum drilling depth1.6929
Overall length (mm)81
Point typeStandard
Shank diameter (mm)5.99
Shank length in1-13/32
Shank typeStraight-Cylindrical
Specification designationDIN
Specification numberDIN 6537
Spiral typeRegular
Threaded shankNo
Tool materialSolid Carbide
Web thinningWeb-Thinned
