SGS

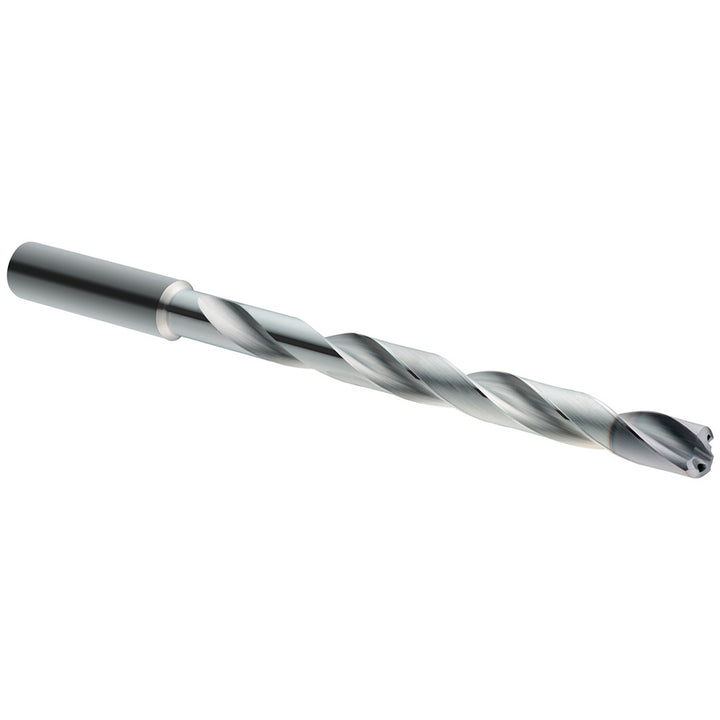

3/4" Solid Carbide Drill Bit, TX, 135° point - SGS 66622
MFR# 66622Series 142P
$318.85List $401.82
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size3/4
CoatingTX
Description
The SGS 66622 is a 3/4" Solid Carbide drill bit with a TX finish, 135° point. 7-31/64 flute length. Series 142P.
Specifications
Coating finishTX
Coolant throughYes
Cutting directionRight Hand
Drill bit diameter tolerance+.00031/+.00114 in; +0.007/+0.025 mm
Drill bit gradeHigh Performance
Drill bit size in3/4
Drill point angle degrees135
Drill point length0.0375
Flute length in7-31/64
Flute length x diameter ratio8xD
Flute typeSpiral
Material applicationUniversal
Material gradeMicrograin
Maximum drilling depth1.6929
Overall length9-9/16
Point typeStandard
Shank diameter (mm)5.99
Shank length1.4173
Shank typeCylindrical
Specification designationDIN
Specification numberDIN 6537
Spiral typeRegular
Threaded shankNo
Tool materialSolid Carbide
Web thinningWeb-Thinned
