SGS

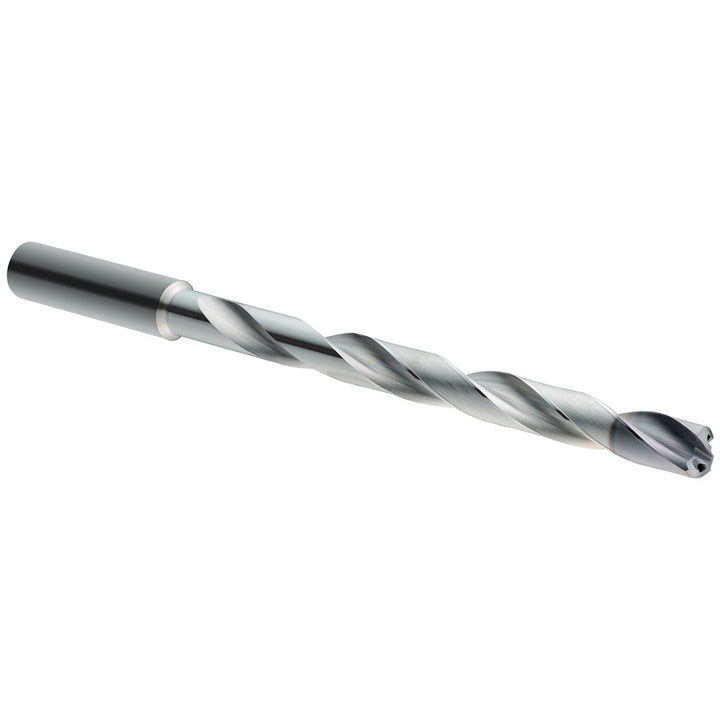

11/32" Solid Carbide Drill Bit, TX, 135° point - SGS 66659
MFR# 66659Series 142P
$353.71List $453.65
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size11/32
CoatingTX
Description
The SGS 66659 is a 11/32" Solid Carbide drill bit with a TX finish, 135° point. Series 142P.
Specifications
Coating finishTX
Coolant throughYes
Cutting directionRight Hand
Drill bit diameter tolerance+.00024/+.00083 in; +0.006/+0.021 mm
Drill bit gradeHigh Performance
Drill bit size in11/32
Drill point angle degrees135
Drill point length0.0677
Flute length3.7402
Flute length x diameter ratio8xD
Flute typeSpiral
Material applicationUniversal
Material gradeMicrograin
Maximum drilling depth3.7402
Overall length5-19/32
Point typeStandard
Shank diameter (mm)10.00
Shank length1.5748
Shank typeCylindrical
Specification designationDIN
Specification numberDIN 6537
Spiral typeRegular
Threaded shankNo
Tool materialSolid Carbide
Web thinningWeb-Thinned
