SGS

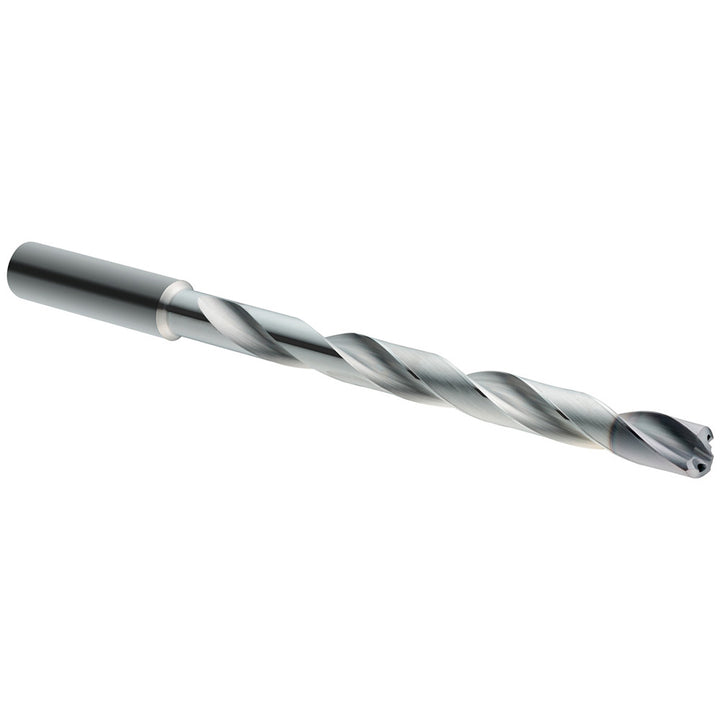

3/8" Solid Carbide Drill Bit, TX, 135° point - SGS 66692
MFR# 66692Series 142P
$487.38List $625.08
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size3/8
CoatingTX
Description
The SGS 66692 is a 3/8" Solid Carbide drill bit with a TX finish, 135° point. Series 142P.
Specifications
Coating finishTX
Coolant throughYes
Cutting directionRight Hand
Drill bit diameter tolerance+.00024/+.00083 in; +0.006/+0.021 mm
Drill bit gradeHigh Performance
Drill bit size in3/8
Drill point angle degrees135
Drill point length0.0946
Flute length4.4882
Flute length x diameter ratio8xD
Flute typeSpiral
Material applicationUniversal
Material gradeMicrograin
Maximum drilling depth4.4882
Overall length5-19/32
Point typeStandard
Shank diameter (mm)11.99
Shank length1.7717
Shank typeCylindrical
Specification designationDIN
Specification numberDIN 6537
Spiral typeRegular
Threaded shankNo
Tool materialSolid Carbide
Web thinningWeb-Thinned
